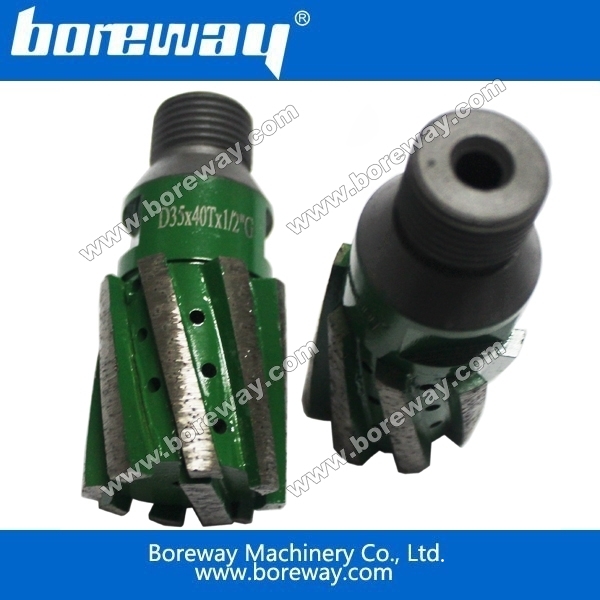

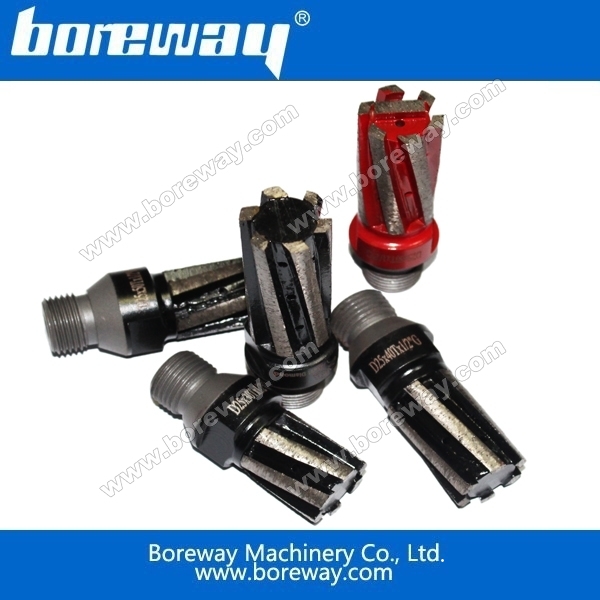

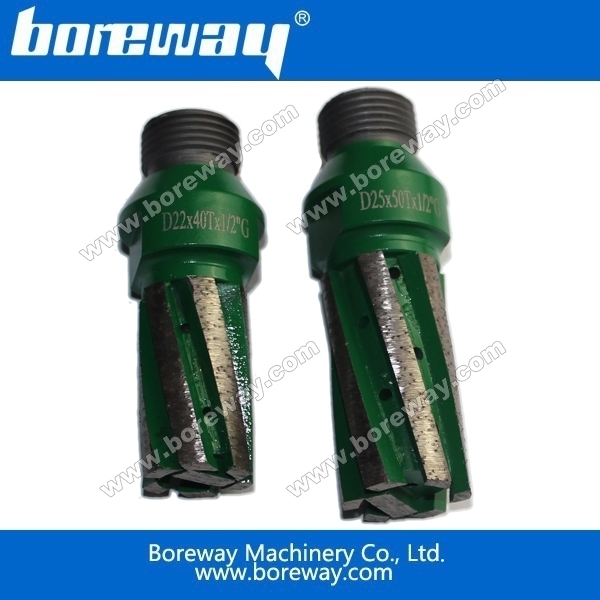

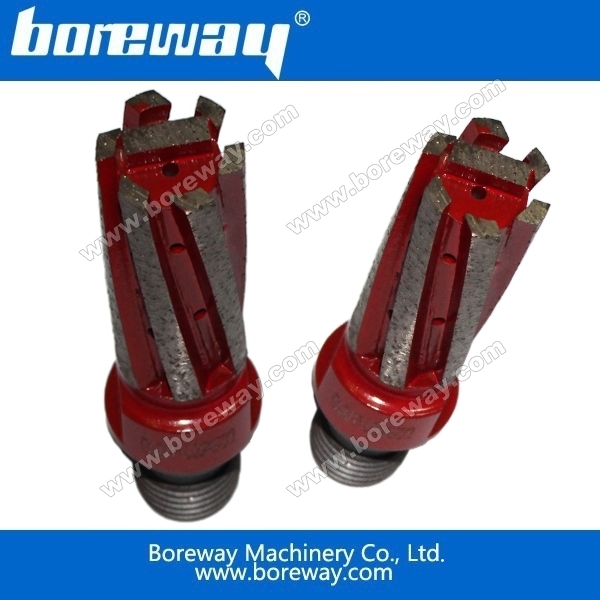

Boreway diamond CNC finger bit
- Model Number: BW-DS-DB-C06
- Type: Wet Use
- Diameter: 22mm to 35mm
- Segment length: 20mm or 30mm or 40mm or 50mm
- Connection: 5/8"-11 or 1/2" G
- Applications: Boreway diamond CNC finger bit is wet use on CNC machine for drilling stone,concrete and ceramic.
- Machine: CNC machine and other drilling machine.
- Industry: Diamond drilling tools
- Welding method: Sinter welding
- Advantage: Good sharpness and Long lifespan.
Introduction:
Diamond CNC finger bits are widely equipped with CNC machines for cutting,grinding and milling
the edge of stone kitchen tops, vanity tops,counter tops,table tops etc. The unique design of our finger
bit allows better cooling and easy dust removal, good sharpness and long life.
Features:
1.High efficiency,long lifespan and fast milling speed.
2.Good balance and stable performance.
3.Strengthened bottom is available upon clients’ demands.
Specifications:
The followings are the normal specifications of our diamond CNC finger bits:
|
Product Name |
Type |
Diameter |
Segment Length |
Segment No. |
Connection |
|
Diamond CNC Finger Bit |
Segmented |
22mm 24mm 25mm 30mm 35mm |
20mm 30mm 40mm 50mm |
5 Segments |
5/8’’-11 1/2’’ Gas |
|
Resin Filled |
5+1 Segments (Strengthened Bottom) |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Premium.
