Diamond Profiling Router Bit Set For Counter Top ，portable diamond resin filled router bit，resin filled router grinding wheel for counter top，segment cutting router bit for counter top

Model Number:BW-CRB
Grit:POS1-POS8
Applications:Diamond Profiling Router Bit Set For Counter Top are used for portable machine for processing the granite,marble,other stones and the counter.
Advantage:High efficiency,good blance,long lifespan

Introduction:

Diamond Profiling Router Bit Set For Counter Top are used for CNC machine or portable machine processing the granite,

marble,other stones and the counter.Their merits are high efficiency of production,exact figure.

Using sequence: from rough grit to fine, finally polishing.

The following are different shapes design , including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC

Features:

1.CNC granite diamond polishing wheels have different shapes and sizes are available.

2.Good balance and stable performance.

3.Sintered segment is aggressive for easy and quick stock removal.

Specifications:

The followings are the normal specifications of Diamond Profiling Router Bit Set For Counter Top :

Product Name	Position	Grit	Diameter	Thickness	Stone Shape	Spindle
Diamond Router Bit	Pos1	30/40#	50-125mm	20mm 30mm 40mm 50mm	A, B, D, E,F, G, H, I, L, M,N, O,P,Q,S,T,U, V,WF,DD,DC etc.	M8 M10 M14 1/2 "Gas 22mm 35mm
	Pos2	40/50#
	Pos3	80/100#
	Pos4	170/200#
	Pos5	400#
	Pos6	600#
	Pos7	1000#
	Pos8	Optional

The above specifications are for reference, other specifications can be ordered by customers.

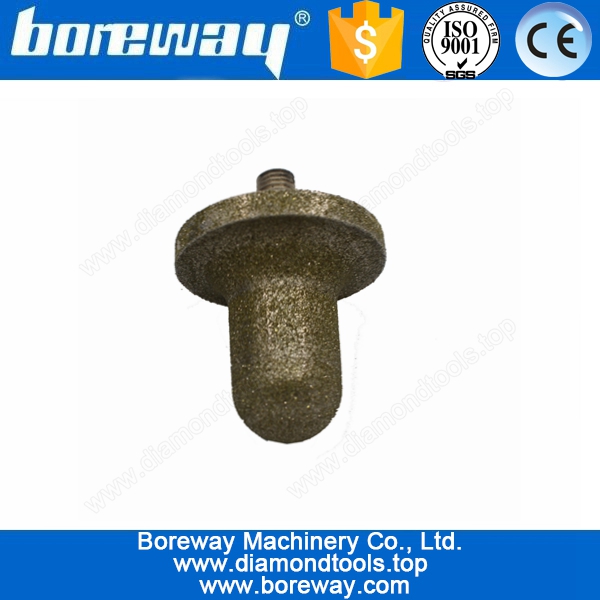

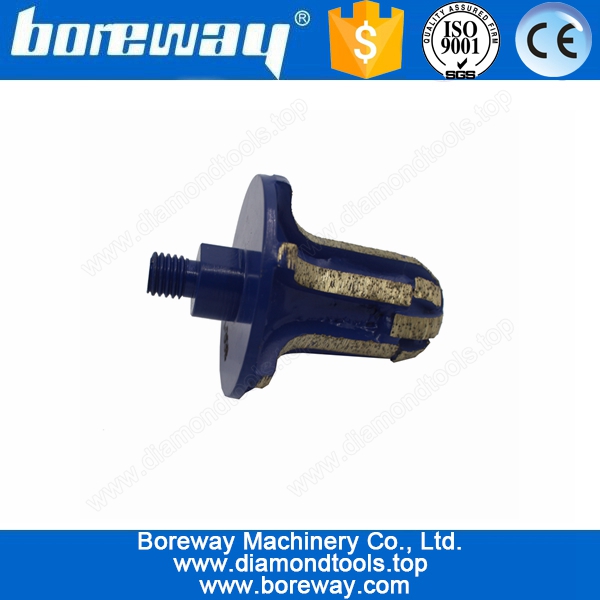

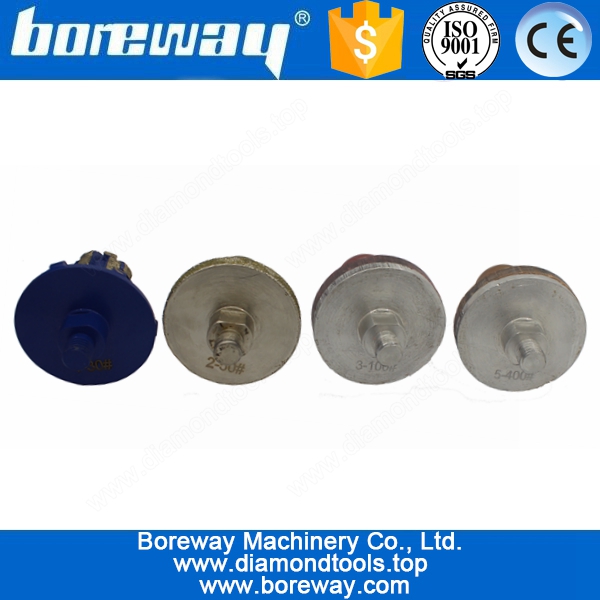

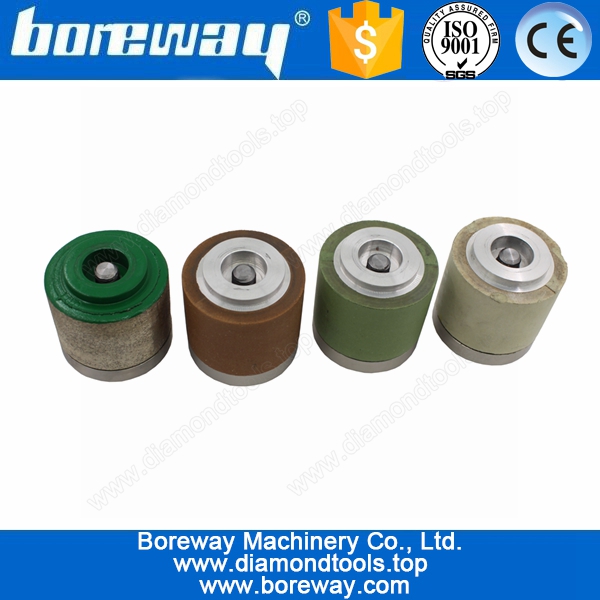

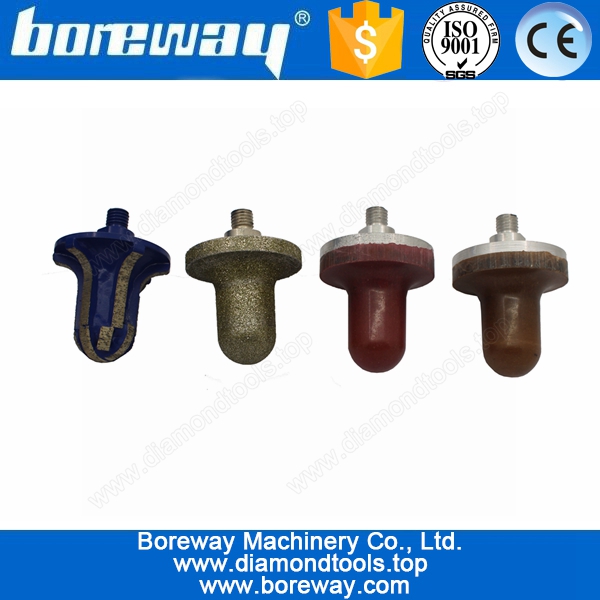

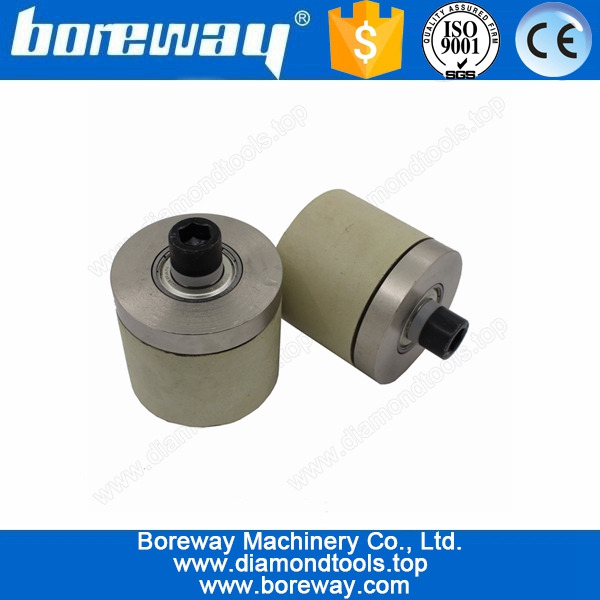

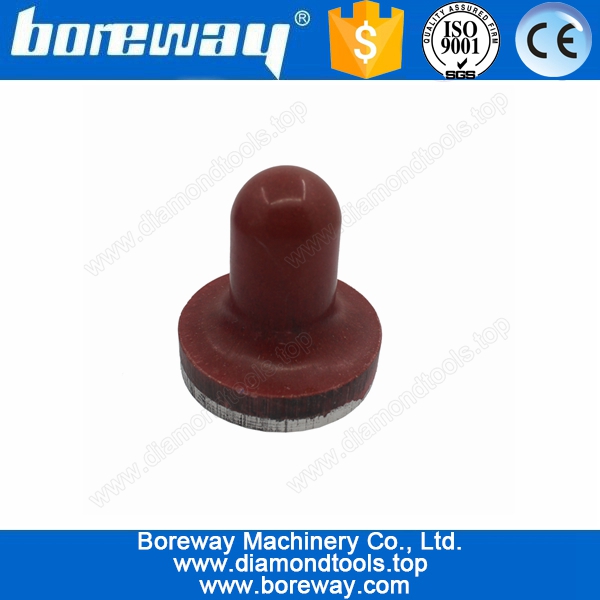

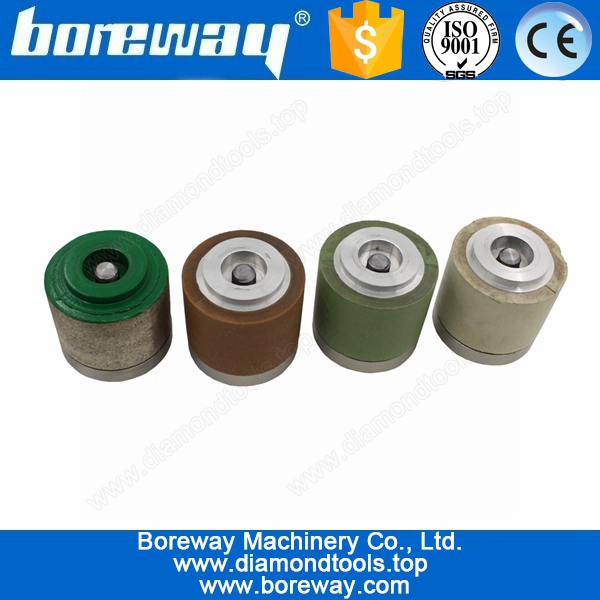

Picture:

Diamond Profiling Router Bit Set For Counter Top
