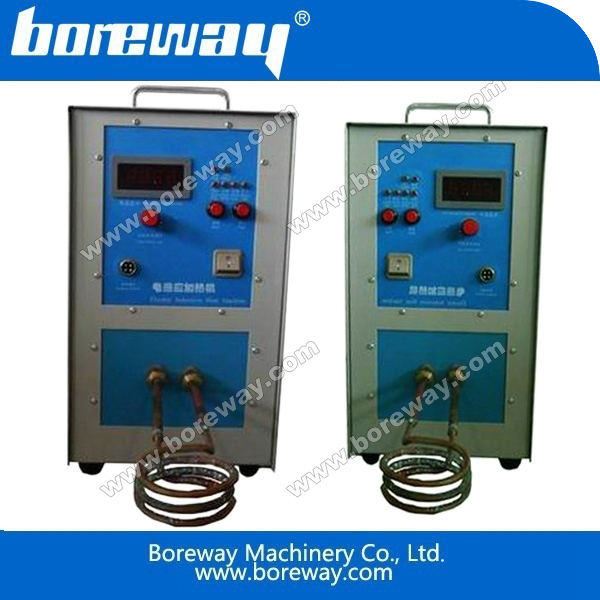

20KW high frequency induction welding machine
- Model Number: BWM-HFIWM-20KW
- Type: Electrify
- Power: 20KW
- Work frequency: 30-100KHz

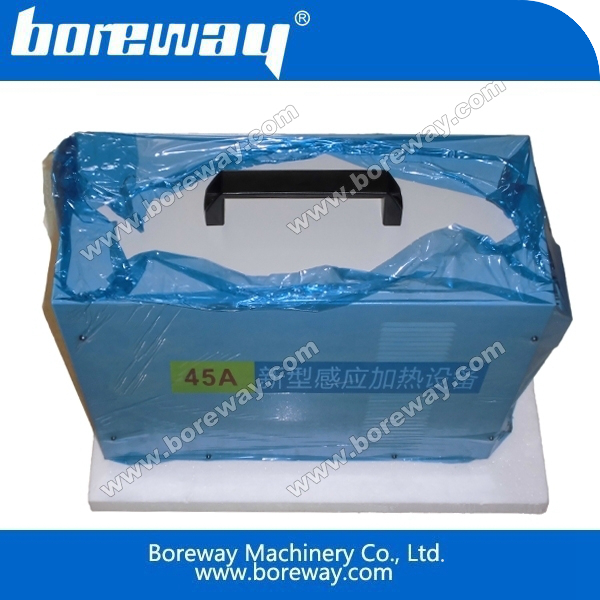

- Packing Dimension: 620mm×290mm×500mm
- Machine Weigh: 25Kg

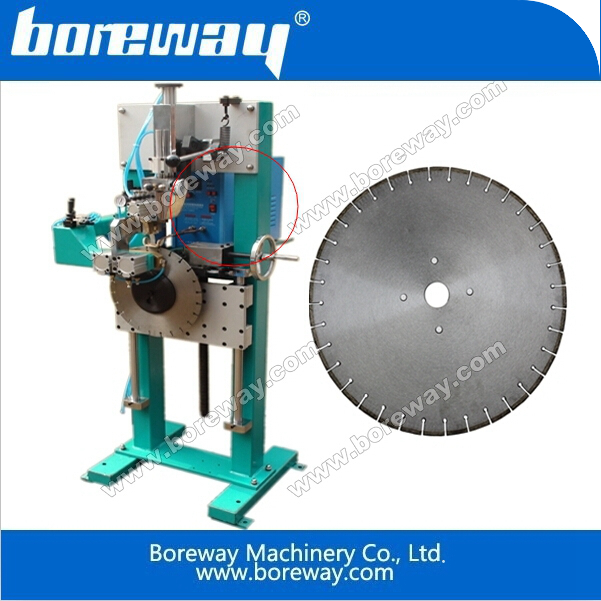

- Applications: Boreway 20KW high frequency induction welding machine is welding diamond saw blade and core bit with welding machine frame.
- Machine: Welding machine frame.
- Industry: Welding machine
- Advantage: High quality and long lifespan.
Introduction:
The device uses a series resonant circuit, low-voltage, high-current, high-frequency power by high-frequency transformer output resonance; equipment for my company's first generation products, using MOSFET power devices and our first-generation variable flow control technology, equipment very simple structure, high reliability, easy maintenance, low maintenance, customer, and is currently the most widely used one of the devices.
Features:
1.Under the same conditions, saving a double electric energy than traditional ones.
2.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.
Specifications:
The followings are the normal specifications of our high frequency induction welding machine:
Parameters |
Numerical |
Input voltage |
Single-phase 220V 50HZ or 60HZ |
Power |
20 KW |
Out current |
200-1050 A |
Work frequency |
30-100 KHZ |
Rated duty cycle |
100% |
Power factor |
≥95 |
Temperature of cooling water |
≤ 40°C |
Cooling water Pressure |
0.06-0.12 Mpa |
Cooling watering flow |
7.5 L/min |
Packing Dimension |
620mm×290mm×500mm |
Machine Weigh |
25 KG |
The above specifications are for reference, other or special specifications can be ordered by customers.
