Boreway Brazed Metal Magnet Holder Braze For Welding Core Bit Segment On Core Barrels
- Diameter:180mm
- Material:Diamond
- Segment No.:14pcs
- Use:Masonry Drilling
- Brand Name:BOREWAY
- Segment Thickness:4.5mm
- Steel Core Thickness:3.0mm
- Segment Size:24x4.5x10mm
- Model Number:BW-DS-DB-D180
- Place of Origin:Fujian, China
- Raw Material:Magnet,steel etc
- 4 position:4 side clearance available
- Retip Welding Magnet:0.5/0.75/1.0/1.25mm
- Application:Braze For Welding Segment On Core Barrels
Boreway Brazed Metal Magnet Holder Braze For Welding Core Bit Segment On Core Barrels
| Description: |
|
Generally speaking, the thickness of segments should be at least 1.5mm thicker than the steel barrel. There are four different side tolerances to adjust according to the thickness difference between segment and steel tube. Braze for welding segment on core barrels tools are made of strong N35EH neodymium magnet with strong magnitism and high resistance for heat. Besides, four different side tolerances are marked a, b, c, d in different positions, which make the whole retipping work easily and precisely.
|
| Product Specifications: |
Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4
Following is the reference for the braze for welding segment on core barrels tools size and steel core width for different diameter:
| Diameter (mm) |
Segment No. |
Segment Size(mm) |
Segment Thickness |
Steel Core Thickness |
| D25 | 3 | 15x3.5x9mm | 3.5mm | 2.0mm |
| D32 | 4 | 15x3.5x9mm | 3.5mm | 2.0mm |
| D38 | 5 | 20x3.5x9mm | 3.5mm | 2.0mm |
| D44 | 5 | 20x3.5x9mm | 3.5mm | 2.0mm |
| D52 | 5 | 24x3.5x10mm | 3.5mm | 2.0mm |
| D58 | 5 | 24x3.5x10mm | 3.5mm | 2.0mm |
| D63 | 6 | 24x3.5x10mm | 3.5mm | 2.0mm |
| D76 | 7 | 24x3.5x10mm | 3.5mm | 2.0mm |
| D89 | 8 | 24x3.5x10mm | 3.5mm | 2.0mm |
| D102 | 9 | 24x4.0x10mm | 4.0mm | 2.0mm |
| D108 | 10 | 24x4.0x10mm | 4.0mm | 2.5mm |
| D114 | 10 | 24x4.0x10mm | 4.0mm | 2.5mm |
| D127 | 11 | 24x4.0x10mm | 4.0mm | 2.5mm |
| D140 | 11 | 24x4.0x10mm | 4.0mm | 2.5mm |
| D152 | 12 | 24x4.0x10mm | 4.0mm | 2.5mm |
| D167 | 12 | 24x4.0x10mm | 4.0mm | 2.5mm |
| D180 | 14 | 24x4.5x10mm | 4.5mm | 3.0mm |
| D200 | 14 | 24x4.5x10mm | 4.5mm | 3.0mm |
| D230 | 15 | 24x4.5x10mm | 4.5mm | 3.0mm |
| D250 | 16 | 24x4.5x10mm | 5.0mm | 3.5mm |
Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.
Tailor your tools to your specific needs.
| Product Details: |

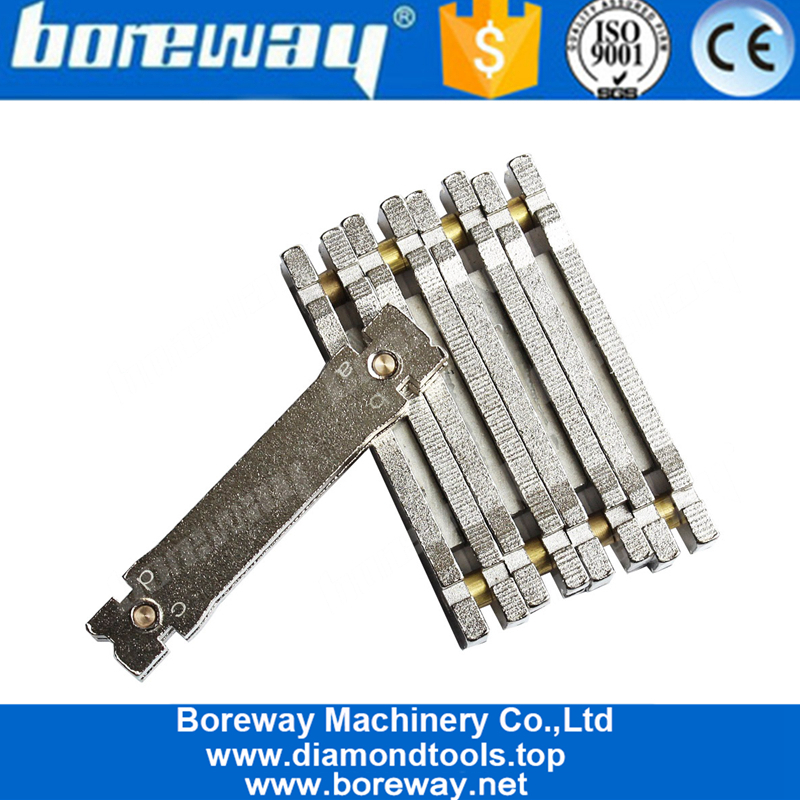

Braze for welding segment on core barrels tools:
| Advantages: |

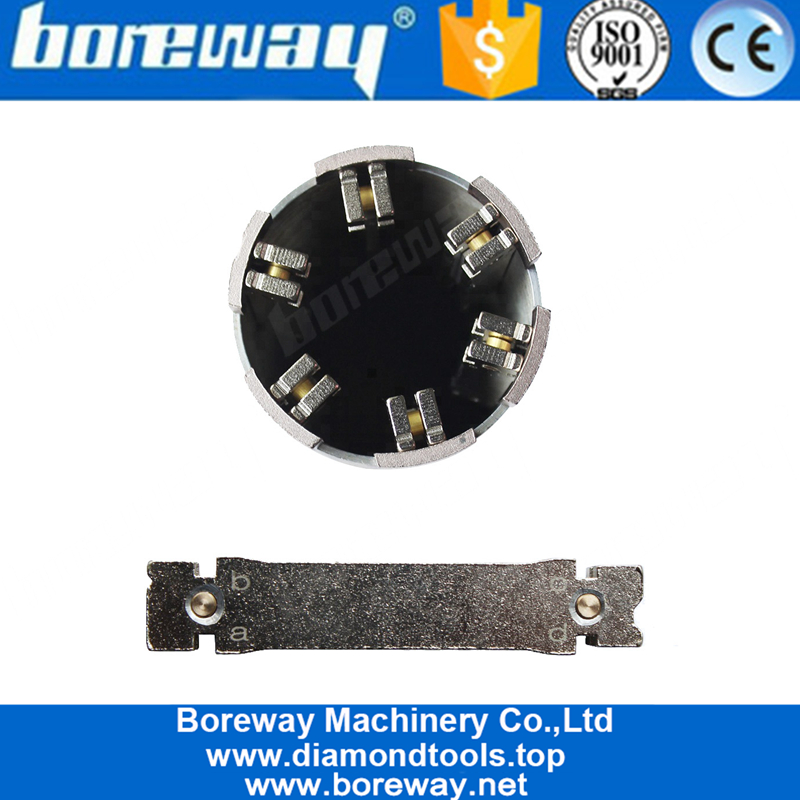

Braze for welding segment on core barrels tools
| Application: |

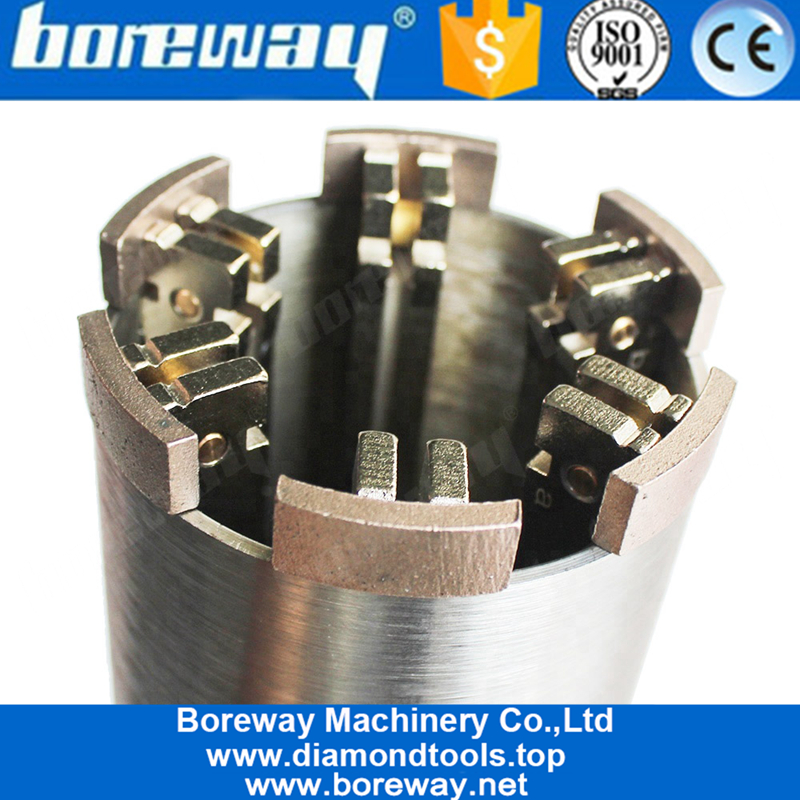

Braze For Welding Segment On Core Barrels
