Boreway Sintered Crown Shape Core Drill Segment For Concrete Factory Price
- Material:diamond
- Brand Name:BOREWAY
- Segment width:2.5mm
- Segment height:10mm
- Diameter:1inch(25mm)
- Use:Masonry Drilling
- Production technology:Sintered
- Place of Origin:Fujian, China
- Type:Core Drill Bit segment
- Model Number:BW-DS-DB-C01-06
- Welding:High frequency welding,Silver welded
- Used for:Handheld drill or table drill machine
- Application: Cured reinforced concrete with hard to soft aggregates
Boreway Sintered Crown Shape Core Drill Segment For Concrete Factory Price

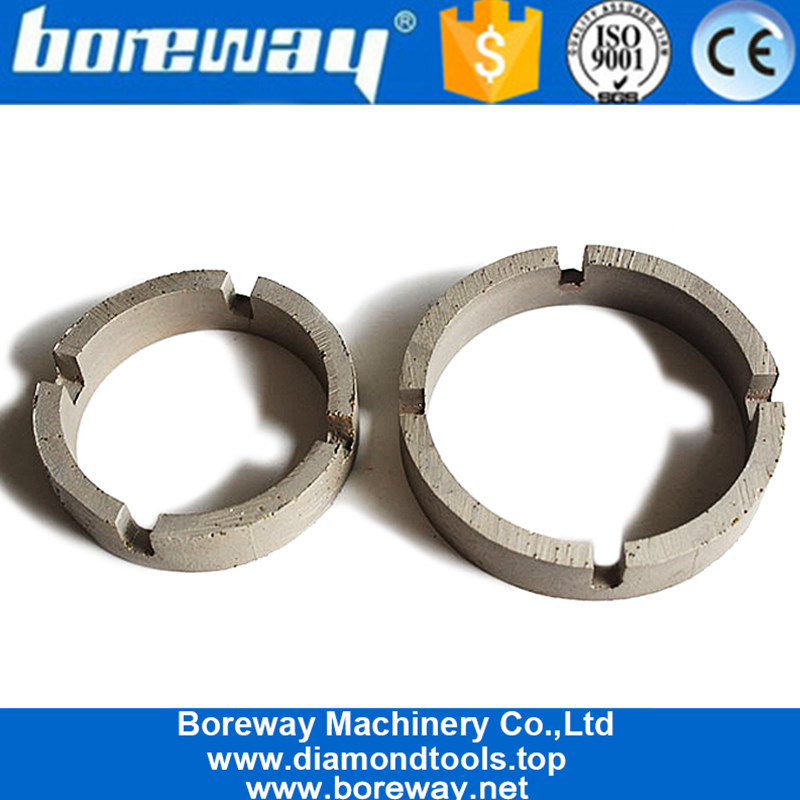

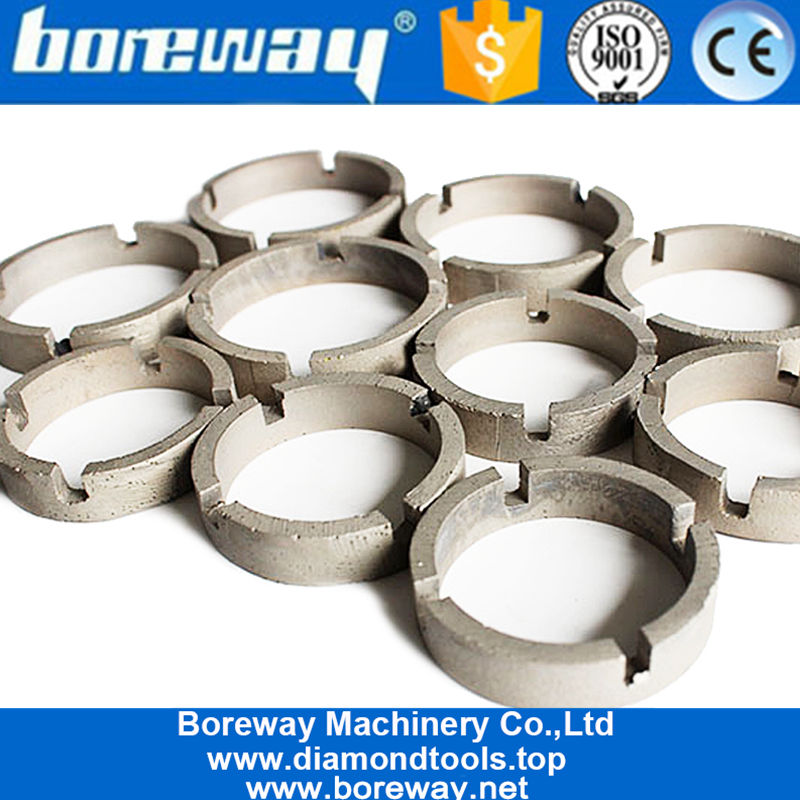

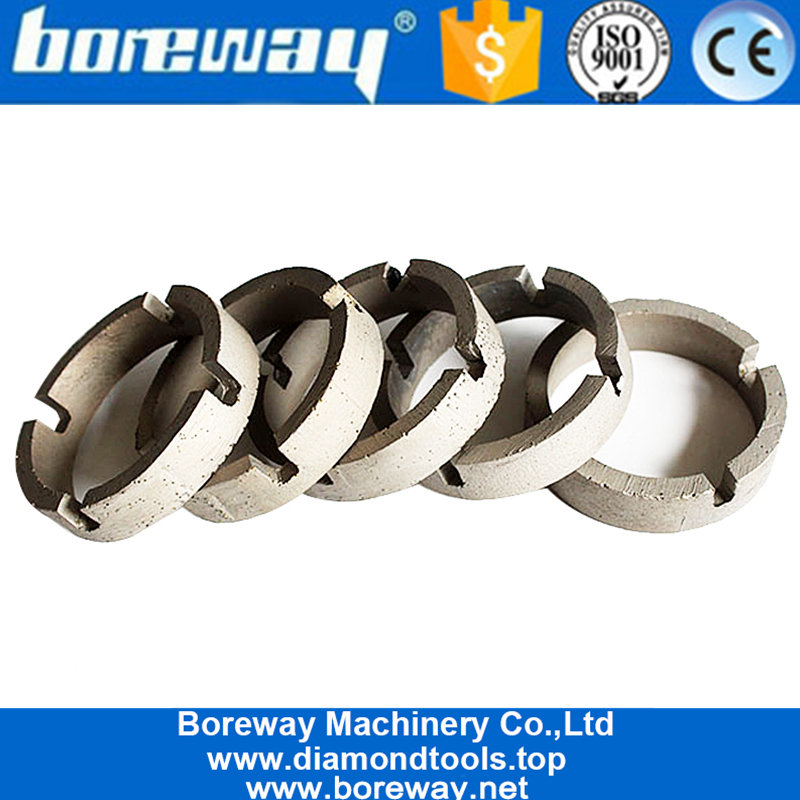

Sintered crown shape core drill segment of small diameter drill bits with crown of 22mm-52mm provide smooth drilling and avoid segments loosing. High Concentration of diamond offers long drilling life.
Sintered crown shape core drill segment cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
![Block cutting segment for granite and hard stone](/uploads/upfile/601/images/31/20191021121304920.jpg)
![270MM Bush Hammered Plate For HTC Grinders](/uploads/upfile/601/images/a8/20190717111334567.jpg)
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.
3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
Aad the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
only customers can get a license.
![](/uploads/upfile/601/images/39/20190921153554465.png)
No.605 Huahui Center, Shuitou Town 362342 Quanzhou, Fujian, China
TEL: (+86)595-86990206 /
Fax: (+86)595-86990220
Mobile/WhatsApp/Wechat: (+ 86) 18650679939
E-mail: boreway@boreway.com
Lyon Chang
Descriptions:
|
Diamond Segments of Drill Bits - Crown Shape
Welding Type: Silver welding.
Wet Use.
Specification: |
The following are normal specifications sintered crown shape core drill segment:
Code No. | Diameter | Segment Width | Segment Height |
BW-DS-DB-C01-01 | 14mm | 2.5mm | 10mm |
BW-DS-DB-C01-02 | 16mm (5/8”) | 2.5mm | 10mm |
BW-DS-DB-C01-03 | 18mm | 2.5mm | 10mm |
BW-DS-DB-C01-04 | 3/4"(20mm) | 2.5mm | 10mm |
BW-DS-DB-C01-05 | 7/8"(22mm) | 2.5mm | 10mm |
BW-DS-DB-C01-06 | 1"(25mm) | 2.5mm | 10mm |
BW-DS-DB-C01-07 | 1.18"(29mm) | 2.5mm | 10mm |
BW-DS-DB-C01-08 | 1-1/4"(32mm) | 2.5mm | 10mm |
BW-DS-DB-C01-09 | 1-3/8"(35mm) | 2.5mm | 10mm |
BW-DS-DB-C01-10 | 1-1/2"(38mm) | 3.0mm | 10mm |
BW-DS-DB-C01-11 | 1.63"(42mm) | 3.0mm | 10mm |
BW-DS-DB-C01-12 | 1-3/4"(45mm) | 3.0mm | 10mm |
BW-DS-DB-C01-13 | 1.88"(48mm) | 3.0mm | 10mm |
BW-DS-DB-C01-14 | 2"(52mm) | 3.0mm | 10mm |
Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.
Advantages: |
1.Good sharpness of cutter head, fast drilling speed and high efficiency;
2.Sintered crown shape core drill segment adopts diamond sheet material and metal matrix (Ti + Cr + Ni + CO, etc.) to form chemical bond, which can reduce threshing, improve cutting edge and prolong service life.
3. Good wear resistance coefficient, long service life and high comprehensive cost performance!
Note: the operator is required to add a certain amount of cooling water, and the spray flow should be large, so that it has better cooling effect, so as to improve the service life of the drill and reduce the cost!
Application: |
Machine for making cutter Segment: |
![Wet use diamond crown shape core drill segment](/uploads/upfile/601/images/54/20191022102123797.jpg)
Machine for welding the cutter segment base: |
|
Block cutting segment for granite and hard stone
![Block cutting segment for granite and hard stone](/uploads/upfile/601/images/31/20191021121304920.jpg)
About Us: |
![270MM Bush Hammered Plate For HTC Grinders](/uploads/upfile/601/images/a8/20190717111334567.jpg)
Our Service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
Description: |
1. If we want to order your product, how do we know your quality?
Please test in a very small order and then you will know the quality. Now, so
many people in the world use Chinese products because of their high quality and high quality,
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.
Please test in a very small order and then you will know the quality. Now, so
many people in the world use Chinese products because of their high quality and high quality,
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.
3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
Aad the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
only customers can get a license.
Please Note: |
1. Please provide items before purchase.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
Contact Us: |
![](/uploads/upfile/601/images/39/20190921153554465.png)
![](/uploads/upfile/601/images/91/20190921152930794.png)
![](/uploads/upfile/601/images/2f/20190921153346886.png)
![](/uploads/upfile/601/images/95/20190921153456814.png)
![](/uploads/upfile/601/images/43/20190921153114753.png)
![](/uploads/upfile/601/images/a6/20190921153230323.png)
![](/uploads/upfile/601/images/c1/20190921152721966.png)
Fujian Nan’an Boreway Machinery Co., Ltd.
Tel:0086-18650679939
Contact Person:Dora Zhang
PDF Show:PDF
