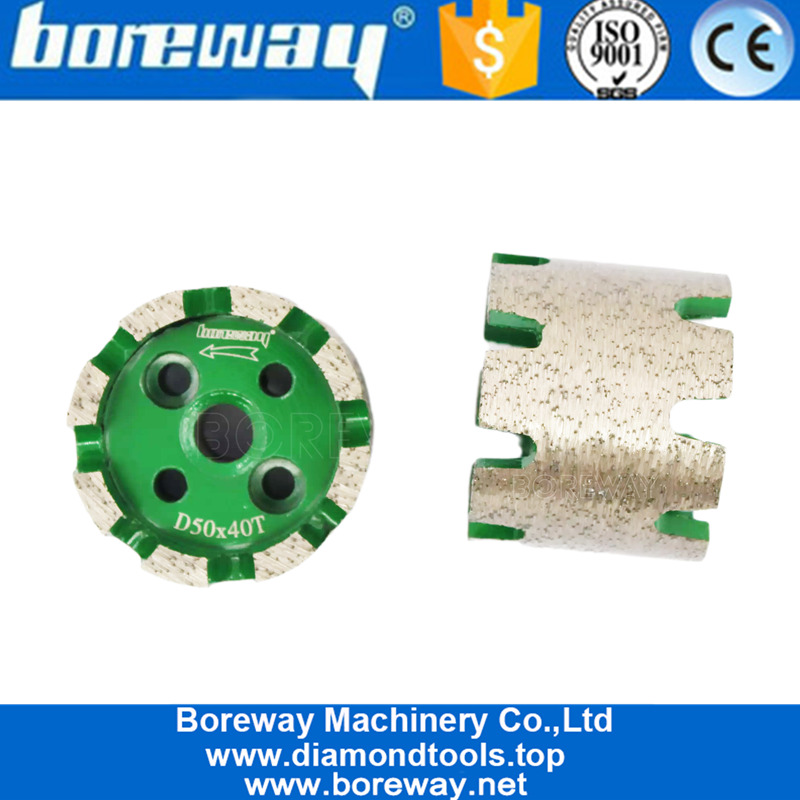

2 Inch CNC Sintering Standard Stubbing Wheels for Marble Granite Suppliers
- Inner Hole: 10mm
- Size: D50x40Tx10H
- Wet or Dry: Wet Use
- Type: Continuous Type
- Brand Name: Boreway
- Diameter: 50MM(2 INCH)
- Height Of Segment: 40mm
- Machine: For CNC Machines
- Model Number: BW-DSSW-C50-40
- Usage: For Surface Milling And Material Removal On Stone
Descriptions: |
- Size: D50x40Tx10H
- Processing Technology: Sintering
- Type: Diamond Standard Stubbing Wheel
- China Factory Sintering Standard Stubbing Wheels For Marble, is specially designed for calibrating granite, marble, ceramics and well-designed stone processing, providing high precision and smooth surface
- Be designed for stock removal on granite marble by grinding away an excess stone. It is the fastest way to remove material after cutting out sinkholes.
- Sintering Standard Stubbing Wheels For Marble are used for very aggressive grinding applications and removal of stock on various materials including granite, concrete, limestone, marble, block, terrazzo and more.
Specification: |
The normal size of China Factory Sintering Standard Stubbing Wheels For Marble:
Diameter | Segment Height |
Inner Hole |
50mm | 40mm |
10mm |
To improve the efficiency of standard stubbing wheel,here some machine parameters we suggest:
RPM | Feed Rate | Recommended Depth |
4500 | 400-600MM/Minute | 3MM |
More normal specification of diamond standard stubbing wheel we supply:
Diameter | 50mm, 86mm, 90mm, 100mm |
Segment Height/MM |
20mm, 30mm, 40mm |
Inner Hole | 10mm, 50mm |
Connection | Φ10-2+2Hole Φ10-3+3Hole Φ50-3+3Hole |
Grit No. | 30/40#, 60#, 100#, 200# |
Machine | CNC Machine & Radial Arm Machine |
If you need customization, please contact us
Click Here To Browse More:Diamond Stubbing Wheel For Suppliers
1.Sintering Standard Stubbing Wheels without stone edge damage.
2.High efficiency & long lifespan and fast milling speed.
3.Perfect balance with zero vibration and stable performance.
4.Comparing to other drum wheels, it could avoid breaking the slab.
5.High Quality: Unique design has good clarity, can easily remove dust, low noise and safety
![Sintering Standard Stubbing Wheels For Marble](/uploads/upfile/601/images/47/20210513123350768.jpg)
![2 Inch CNC Sintering Standard Stubbing Wheels for Marble Granite Suppliers](/uploads/upfile/601/images/b0/20210513123440205.jpg)
![2 Inch CNC Sintering Standard Stubbing Wheels for Marble Granite Suppliers](/uploads/upfile/601/images/24/20210513123457986.jpg)
![2 Inch CNC Sintering Standard Stubbing Wheels for Marble Granite Suppliers](/uploads/upfile/601/images/9c/20210513123511951.jpg)
Application: |
Use Type: Sintering Standard Stubbing Wheels For Marble is Wet Use

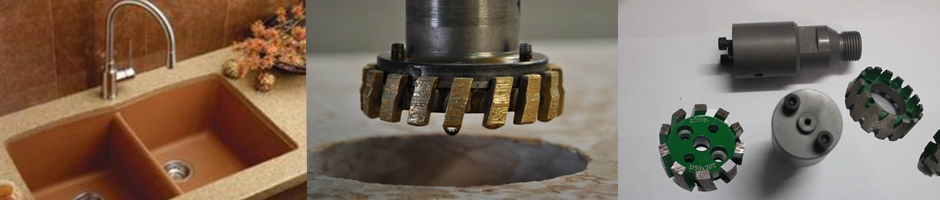

1. Sintering Standard Stubbing Wheels For Marble, is used on CNC machine or router machines
2. Be used for sink hole on the wash basin, bathtub, sink and other products
3. Also can use for calibrating the stone slab, these wheels have large segments for fast stock removal.
![Boreway Factor Price 90mm Diamond Standard Stubbing Wheel For CNC Machine](/uploads/upfile/601/images/ce/20210416185021947.jpg)
![Boreway Factor Price 90mm Diamond Standard Stubbing Wheel For CNC Machine](/uploads/upfile/601/images/62/20210416185036972.jpg)
![BB Shape Sintered Diamond Metal Router Bits](/uploads/upfile/601/images/bc/20210323175430757.jpg)
