Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits
- Type: Dry Use
- Diameter: 20mm To 127mm
- Model Number: BW-DDB-S07
- Pipe Length: 100mm Or 85mm
- Segment Height: 8mm To 10mm
- Technology: Sintering+ Welding
- Industry: Diamond Drilling Tools
- Advantage: Good Sharpness And Long Lifespan.
- Machine: Hand-Held Drill And Other Drilling Machine.
- Applications: Boreway Brazed Tooth Dry Diamond Drilling Bit Is Dry Use For Drilling Granite Marble Artificial Stone And Quartz Etc.
Product Description: |
Welding Type: Silver Welding
Applications: Kinds of granite or hard stone.
Machinery: Suitable for stand drilling machines or Electrical hand-held drillers or CNC machines.Wet or dry use, this type drill bit is specially designed for dry use.
Brazed Tooth Dry Diamond Drilling Bits Supplier are suitable for stand drilling machine,electrical hand-held drillers to dry drilling granite and other construction materials.
The vacuum brazed processing method proves the advantages as high efficiency and long lifespan.
Diamond Core Drill Bits with Turbo segments and pipe diamond vacuum brazed for dry drilling granite or hard stone, common uses would be small projects such as drilling out sink holes for faucets or small holes on slabs.
![Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits 01](/uploads/upfile/601/images/70/20210816102129682.jpg)
Feature: |
1.Excellent cutting speed with a long lifespan.
2.Ideal design of protective tooth can offer high efficiency dry drilling.
Product Specification: |
The followings are the normal specifications of our Vacuum Brazed Diamond Dry Core Bits:
Code No. | Diameter | Segment Size | Use | Pipe Length | Welding Method | Adaptor |
BW-DDB-S07 | 20mm (3/4") | 17/12x3x10 | Dry | 100mm Or 85mm |
Silver Welding Or Laser Welding |
5/8"-11 M14 1/2"Gas |
22mm(7/8") | 17/12x3x10 | |||||
25mm (1") | 17/12x3x10 | |||||
29mm(11/8") | 17/12x3x10 | |||||
32mm(11/4") | 16x3x10 | |||||
35mm(1-1/4") | 16x3x10 | |||||
38mm(1-3/8") | 16x3x10 | |||||
42mm(1-1/2") | 16x3x10 | |||||
45mm(1-5/8") | 16x3x10 | |||||
50/51mm(2") | 16x3x10 | |||||
57mm(2-1/4") | 22x3.5x10 | |||||
60mm(2-3/8") | 22x3.5x10 | |||||
63mm(2-1/2") | 22x3.5x10 | |||||
70mm(2-3/4") | 22x3.5x10 | |||||
76mm(3") | 22x3.5x10 | |||||
80mm(3-1/8") | 22x3.5x10 | |||||
89mm(3-1/2") | 22x3.5x10 | |||||
102mm(4") | 22x3.5x10 | |||||
110mm(4-3/8") | 22x3.5x10 | |||||
127mm(5") | 24x4x10 |
The above specifications are for reference, other Diamond Dry Core Drill Bit Manufacturer specifications can be ordered by customers.
Product show |

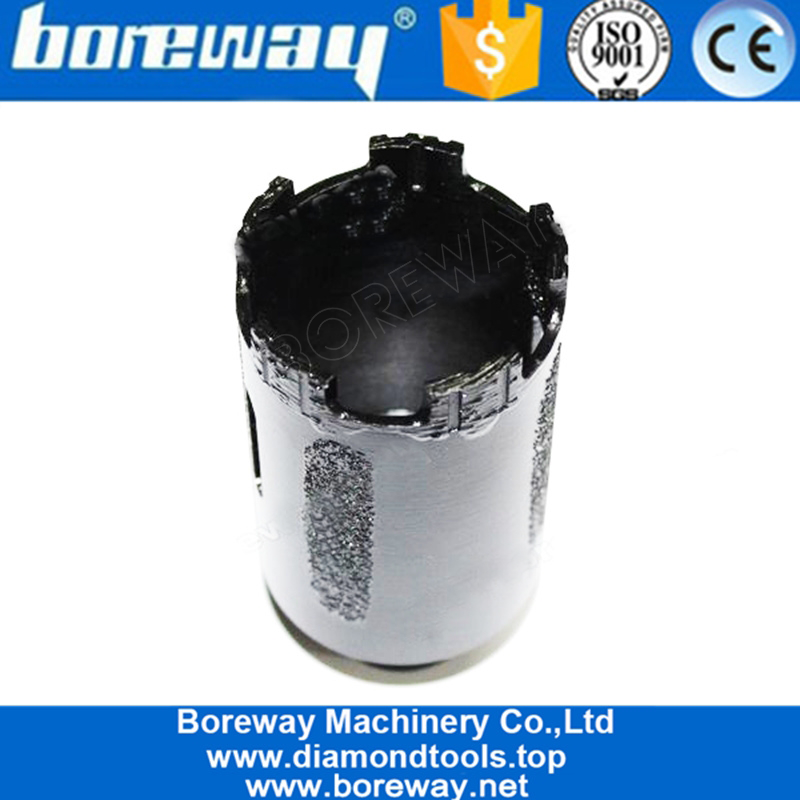

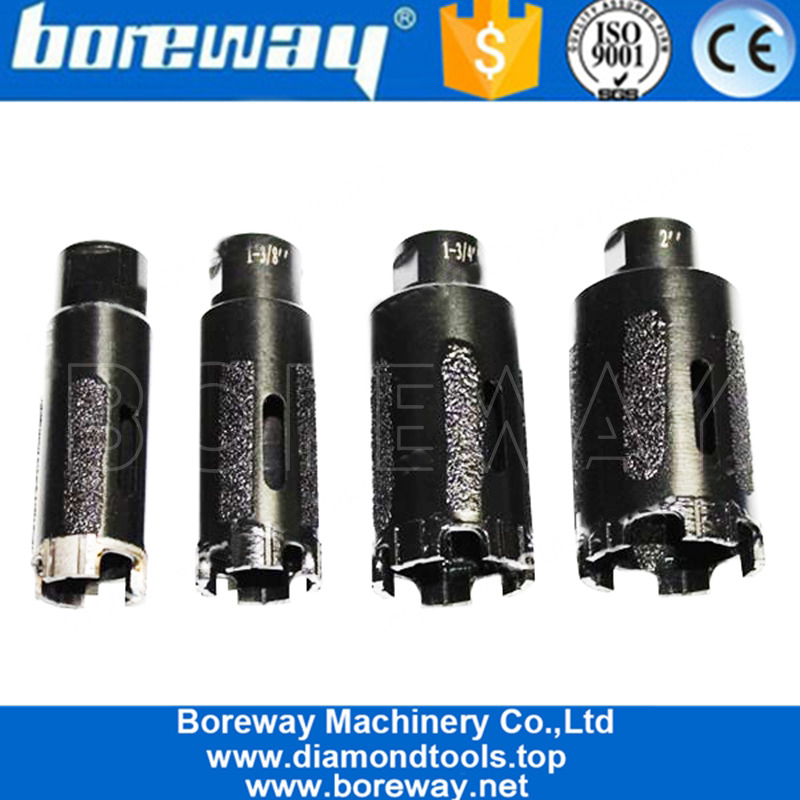

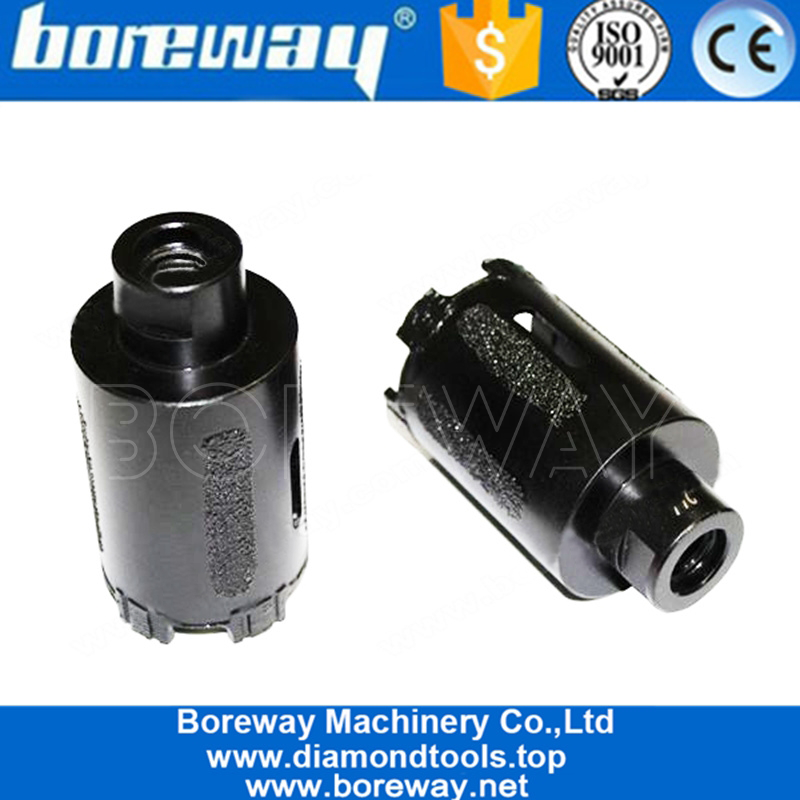

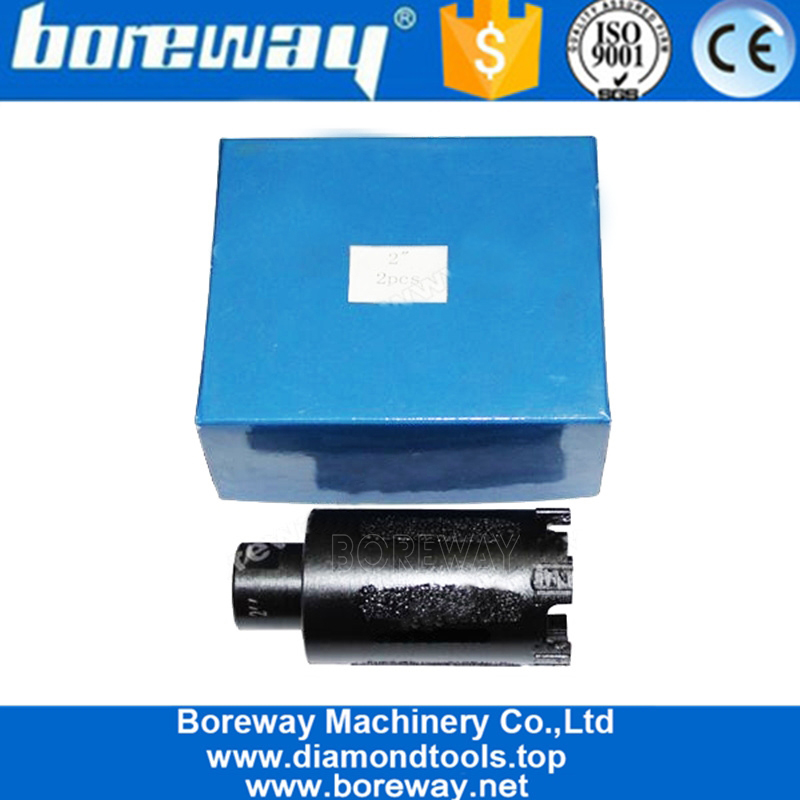

Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits
![Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits](/uploads/upfile/601/images/f5/20220621112738891.png)
![Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits](/uploads/upfile/601/images/10/20220621112755872.png)
![Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits](/uploads/upfile/601/images/ce/20220621112813270.png)
![Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits](/uploads/upfile/601/images/6a/20220621112824685.jpg)
Factory Show |
![](/uploads/upfile/601/images/2e/20210601115755291.jpg)
FAQ |
1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.
Logistics:
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours
