Automatic mechanical cold pressed machine for diamond segment

  • Model Number:   BWM-KH35T,BWM-KH60T
  • Power :           2.2KW,4KW
  • The rated voltage:380V
  • The rated current:6A and 10A
  • Net weight:   760Kg and 1000 Kg
  • Applications:   These cold press machine for diamond segments are used to press diamond segment of saw blade and core drill bit.
  • Industry:   Boreway cold press machine for diamond segment
  • Advantage:   High quality,high speed and long lifespan.
Introduction:
This equipment is divided into two different models according to the different pressure (KH – 35T
and KH 60T). On the basis of the commonly used mechanical cold press machines, We made too
 much improvement and adjustment. It can be used for pressing of large, medium and small saw
blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some
special shape segment, etc.

Specifications:

The followings are the 35T Automatic mechanical cold pressed machine for diamond segment:

Parameter

Maximum working pressure

35000 Kg

Maximum size of mould cavity

40×70 MM

Size of the mould

L (220-250) * W 130 * H (20-30) MM

The largest volume of hopper box

30 Kg

Maximum height of metal powder

0.5-20 MM

Weight accuracy of metal piece

±2%

Quantity of metal piece per time

1 - 4 PC

Motor Power

2.2 KW

The rated voltage

380 V

The rated current

6 A

Work efficiency

25 Times/Min

Distance of upward

64 MM

Device dimension

L810 * W1000 * H1600(Face angle)

Net weight

760 Kg

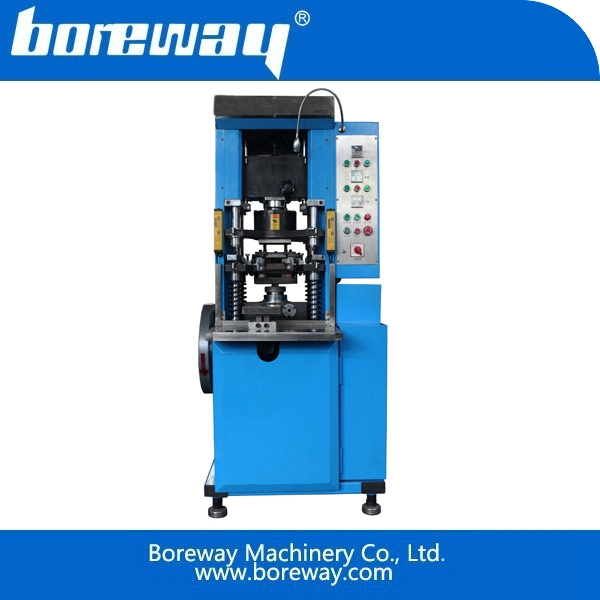

This is our
35T Automatic mechanical cold pressed machine for diamond segment:



Specifications:
The followings are the 60T Automatic mechanical cold pressed machine for diamond segment:

Parameter

Maximum working pressure

60000 Kg

Minimum size of mould cavity

5 × 5 MM

Maximum size of mould cavity

50×70 MM

Size of the mould

L(220-250)*W(130-150)*H(20-40) MM

The largest volume of hopper box

30 Kg

Maximum height of metal powder

0.5-30 MM

Weight accuracy of metal piece

±2%

Quantity of metal piece per time

1 - 4 PC

Motor Power

4 KW

The rated voltage

380 V

The rated current

10 A

Work efficiency

21 Times/Min

Distance of upward

80 MM

Device dimension

L850 * W1150 * H1800(Face angle)

Net weight

1000 Kg

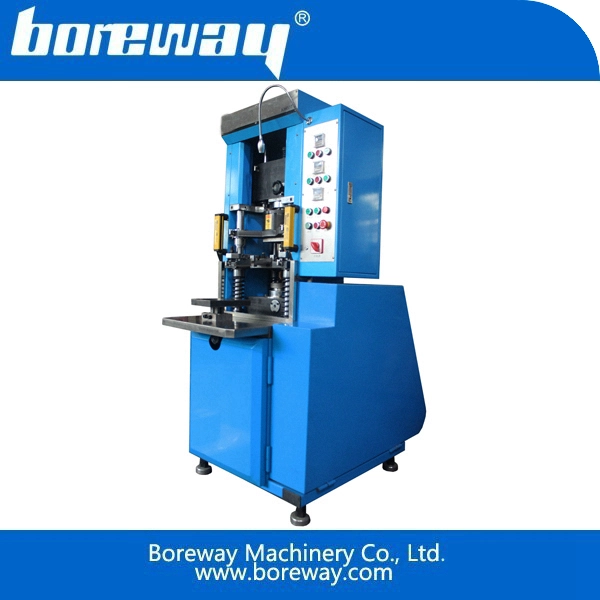

This is our 60T Automatic mechanical cold pressed machine for diamond segment:

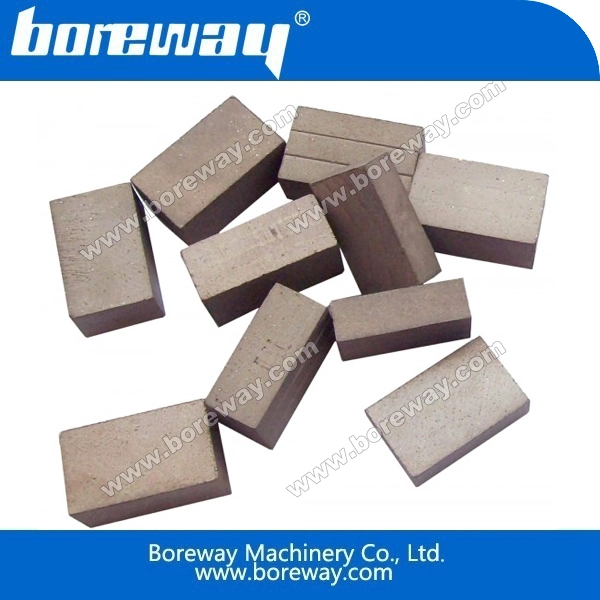

These diamond segments made by our machine:
