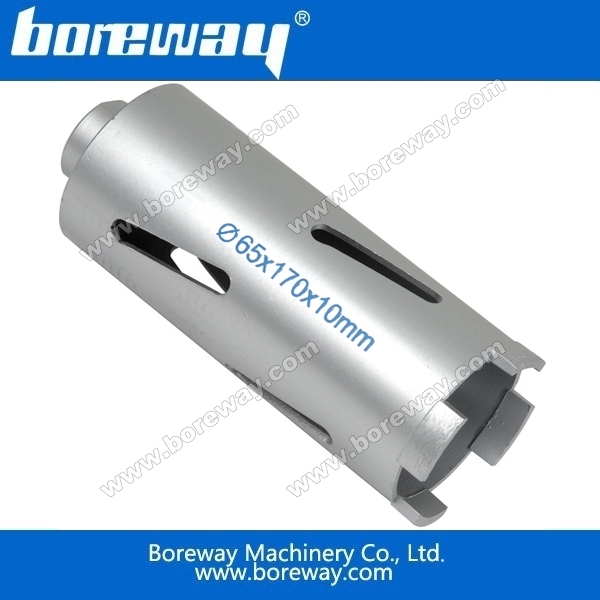

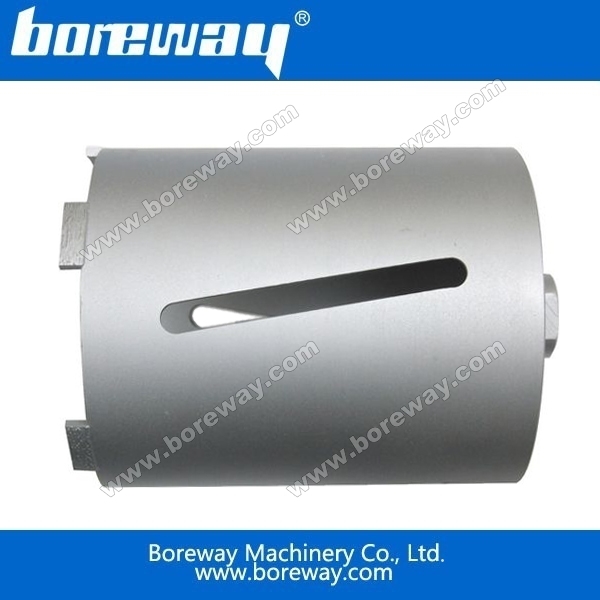

Boreway dry use construction diamond core drill bit
- Model Number: BW-DUCDCDB-001
- Type: Dry Use
- Diameter: 22mm to 250mm
- Segment number: 3 to 11
- Applications: Boreway dry use construction diamond core drill bit is dry use for drilling concrete brick and masonry etc.
- Machine: Hand-held drilling machine and other drilling machine.
- Industry: Diamond drilling tools
- Welding method: Sinter welding
- Advantage: Good sharpness and long lifespan.
Introduction:

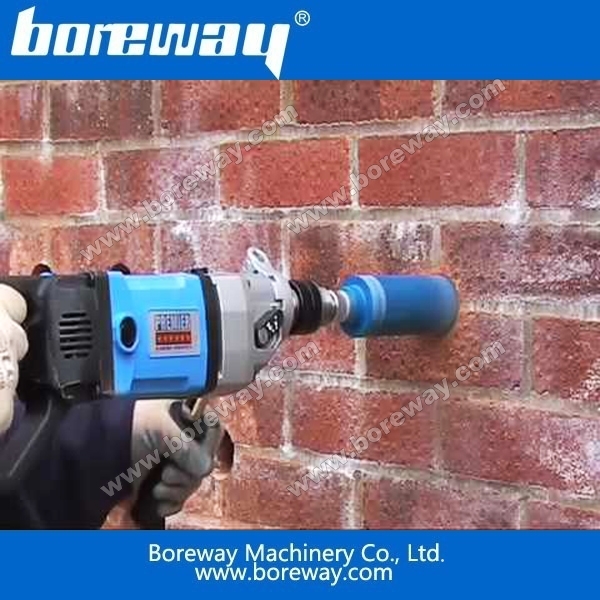

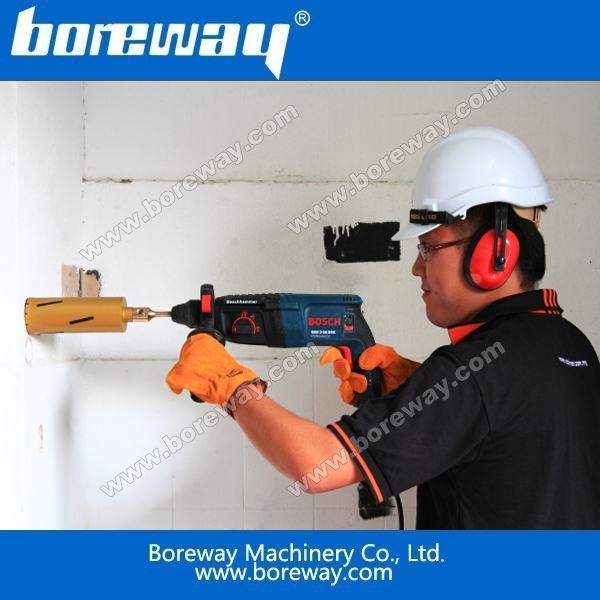

Dry use construction diamond core drill bits are suitable for stand drilling machine,electrical
hand-held drillers for dry drilling concrete,masonry,brick with light or medium steel reinforcing.
The special vents help keeping the bit cool and provide fast removal of cutting debris.
Features:
1.Applicable for most stand drilling machines,hand-held drillers.
2.These drill bits are mainly for dry use.
3.Good balance and stable performance.
4.The special vents help keeping the bit cool and provide fast removal of cutting debris.
Specifications:
The followings are the normal specifications of our dry use construction diamond core drill bit:
|
Product Name |
Diameter |
Segment Size |
Segment No. |
Length |
Applications |
|
Dry Use Construction Diamond Core Drill Bit |
7/8"(22mm) |
17x3.0x7 |
3 |
Can be customized |
Concrete Brick Masonry |
|
1"(25mm) |
17x3.0x7 |
3 |
|||
|
1.18"(29mm) |
17x3.0x7 |
3 |
|||
|
32mm(1-1/4") |
17x3.0x7 |
3 |
|||
|
38mm(1-1/2") |
17x3.0x7 |
4 |
|||
|
50mm(2") |
24x3.5x7 |
3 |
|||
|
68mm(2-1/2") |
24x3.5x7 |
3 |
|||
|
75mm(3") |
24x3.5x7 |
4 |
|||
|
82mm(3-1/2") |
24x3.5x7 |
4 |
|||
|
100mm(4") |
24x4.0x7 |
5 |
|||
|
115mm(4-1/2") |
24x4.0x7 |
6 |
|||
|
125mm(5") |
24x4.0x7 |
6 |
|||
|
150mm(6") |
24x4.0x7 |
7 |
|||
|
180mm(7") |
24x4.0x7 |
9 |
|||
|
200mm(8") |
24x4.5x7 |
9 |
|||
|
230mm(9") |
24x4.5x7 |
10 |
|||
|
250mm(10") |
24x4.5x7 |
11 |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
