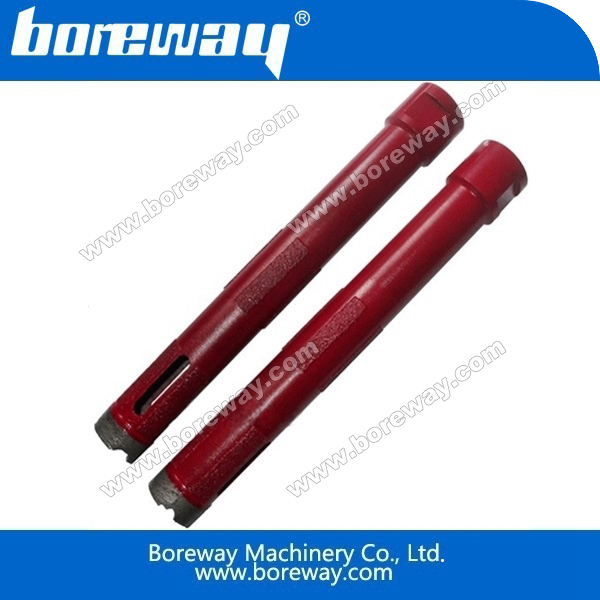

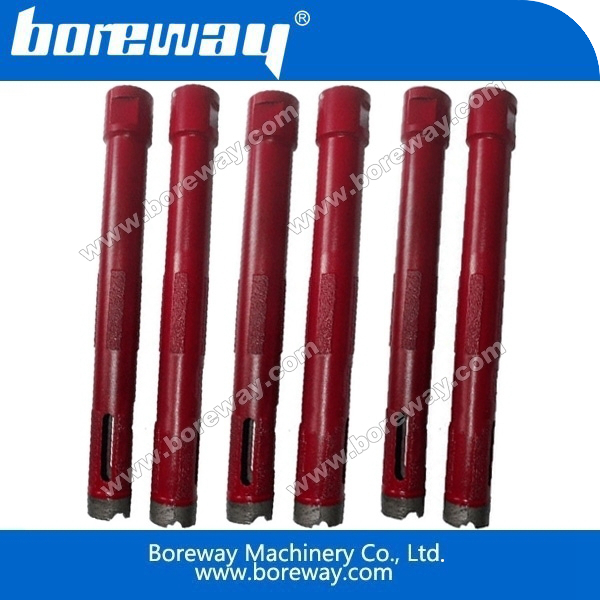

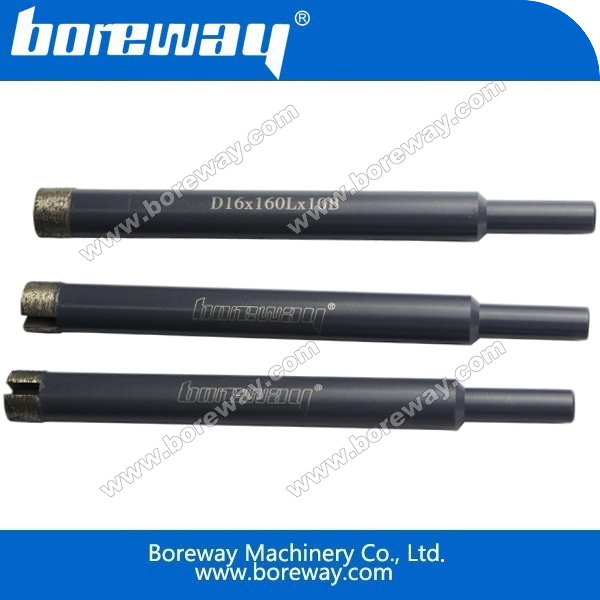

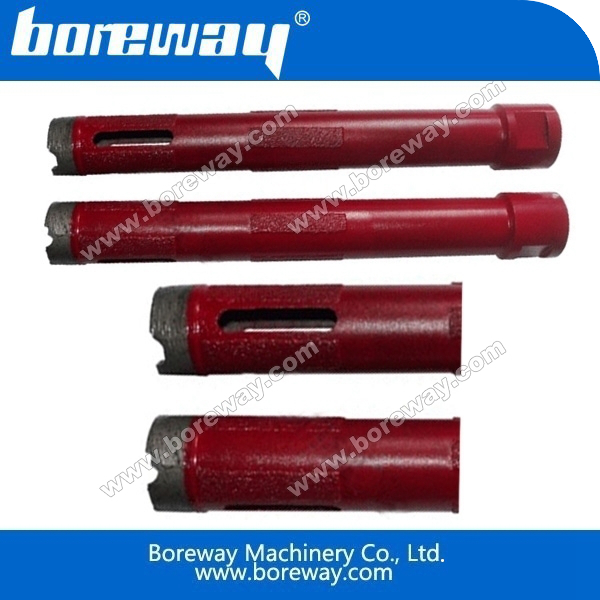

Boreway long pipe normal segmented diamond core drill bit
- Model Number: BW-LPNSDCDB-001
- Type: Wet Use
- Diameter: 20mm to 127mm
- Segment length: 100mm to 400mm
- Applications: Boreway long pipe normal segmented diamond core drill bit is wet use for drilling granite marble artificial stone and quartz.
- Machine: Hand-held drilling machine and other drilling machine.
- Industry: Diamond drilling tools
- Welding method: Sinter welding
- Advantage: Good sharpness and long lifespan.
Introduction:
Long pipe normal segment diamond drill bits are suitable for electrical hand-held drillers or CNC
machines for drilling small holes on kinds of stone such granite, marble, sandstone, limestone,
slate, etc. Common uses would be small projects such as drilling deep holes on thick slabs or
stone blocks.
Features:
1.Applicable for most hand-held drillers or CNC machines.
2.silver welded is better for wet use and laser welded is better for dry use.
3.Good balance and stable performance.
4.High efficiency and longer lifespan.
Specifications:
The followings are the normal specifications of our long pipe normal segmented diamond core drill bit:
|
Product Name |
Diameter |
Segment Size |
Length |
Adaptor |
Applications |
|
Normal Segmented Diameter Diamond Core Drill Bit |
20mm (3/4”) |
17/12x3x10 |
4’’-16’’ (100-400mm) |
5/8"-11 M14 1/2 Gas |
Granite Marble Artificial Stone Quartz |
|
22mm (7/8”) |
17/12x3x10 |
||||
|
25mm (1”) |
17/12x3x10 |
||||
|
29mm (1-1/8") |
17/12x3x10 |
||||
|
32mm (1-1/4”) |
16x3x10 |
||||
|
35mm (1-3/8”) |
16x3x10 |
||||
|
38mm (1-1/2”) |
16x3x10 |
||||
|
42mm (1-5/8") |
16x3x10 |
||||
|
45mm (1-3/4”) |
16x3x10 |
||||
|
50/51mm (2”) |
16x3x10 |
||||
|
57mm (2-1/4”) |
22x3.5x10 |
||||
|
60mm (2-3/8”) |
22x3.5x10 |
||||
|
63mm (2-1/2”) |
22x3.5x10 |
||||
|
70mm (2-3/4”) |
22x3.5x10 |
||||
|
76mm (3”) |
22x3.5x10 |
||||
|
80mm (3-1/8” |
22x3.5x10 |
||||
|
89mm (3-1/2”) |
22x3.5x10 |
||||
|
102mm (4”) |
22x3.5x10 |
||||
|
110mm (4-3/8”) |
22x3.5x10 |
||||
|
127mm (5”) |
24x4x10 |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
