China Manufacturer Supply 400MM-3500MM Semi Automatic Diamond Saw Blade Welding Machine
- Model No:BWM-HJ350
- Welding Range:400mm -3500mm(standard 1800mm)
- Welding Rate:6-12 PCS/Min
- Water Consumption:1.5-2m³/h
- Equipment Weight:330Kg
- Machine Dimensions:L900 * W700 * H2400 (Stand)
- Package Weight:380kg
- Package Dimensions:L2530 * W960 * H780 (Horizontally)
- Voltage:220 （Single-phase）, 50HZ
| Introduction: |
China Manufacturer Supply 400MM-3500MM Semi Automatic Diamond Saw Blade Welding Machine. It is a new type of high-frequency welding auxiliary equipment for diamond saw blades. It can automatically complete high-frequency heating, rapid cooling, tool holder and other operations. Easy to install, easy to connect 220V power supply, water intake, water outlet, you can work without professional installation. Small size, light weight, simple operation, general training can be operated simply.
| Feature: |
1.Welding diameter range: 400 ~ 3500 mm.
2.Small size, light weight, simple operation, general training can be operated simply.
3.The diamond segment device adopts mechanical geometric alignment to ensure symmetry and accuracy.
| Specification: |
Specification of China Manufacturer Supply 400MM-3500MM Semi Automatic Diamond Saw Blade Welding Machine：
| Model No: BWM-HJ350 | |
| Welding Range | Φ400mm - 3500mm(standard Φ1800mm) |
| Verticality | ≤± 0.3mm |
| Parallelism | ≤± 0.3mm |
| Welding Rate(Segments Qty/Min) | 6-12 PCS/Min |
| Air Pressure | 0.3 - 0.6Mpa |
| Water Pressure | ≥ 0.2Mpa |
| Voltage | 220V (Single-phase)50Hz |
| Power(From LED Light) | 550W |
| Water Consumption | 1.5 - 2m³/h |
| Machine Dimensions | L900*W700*H2400mm |
| Equipment Weight | 330Kg |
| Package Dimensions | L2530*W960*H780(Horizontally) |
| Package Weight(Wooden Package) | 380Kg |
Noted:This of welding frame is not equipped with high frequency machine, air compressor, water pump, if necessary, can be another random frame configuration.
| Picture: |

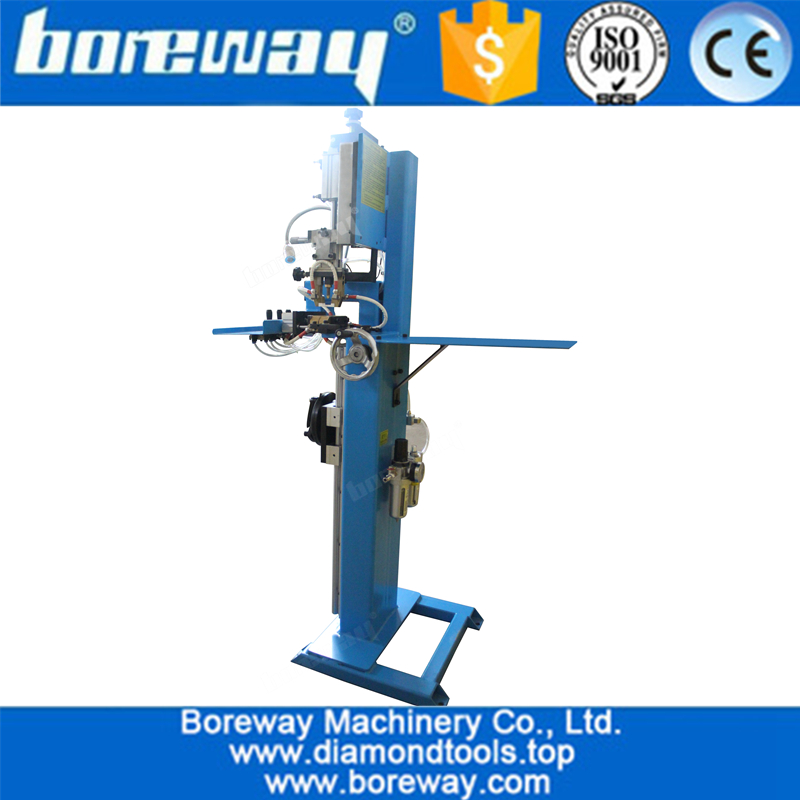

China Manufacturer Supply 400MM-3500MM Semi Automatic Diamond Saw Blade Welding Machine
High frequency heating machine can be controlled by electrical system of this frame, of course you also can control the frequency heating machine via itself control system. The “BWM-HJ350” type welding frame has electric lifting system, and there are jacks on the left side of the electric control box, connect them correctly. There are lifting control buttons on the front side of the electric control box, please pay attention to the upper and lower limit when using the lifting system because there’s no automatic limit function.
