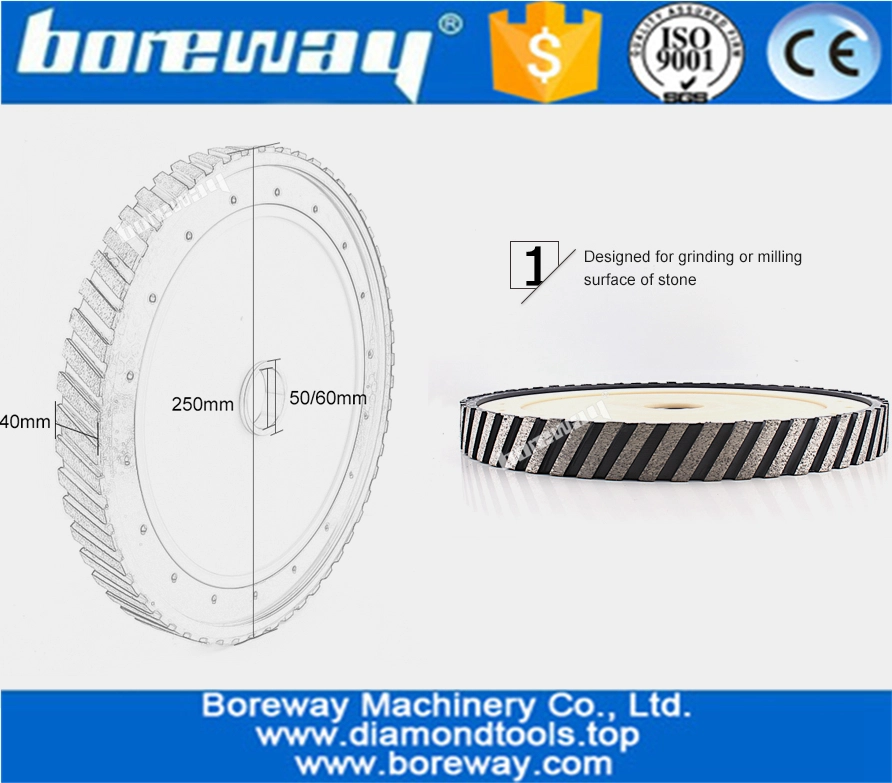

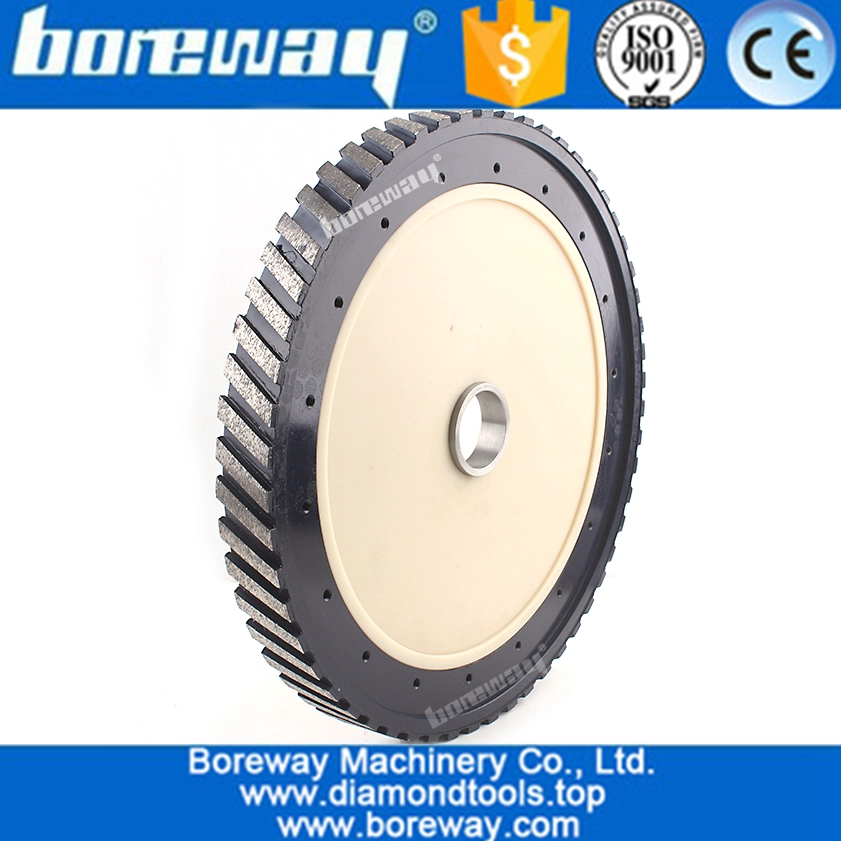

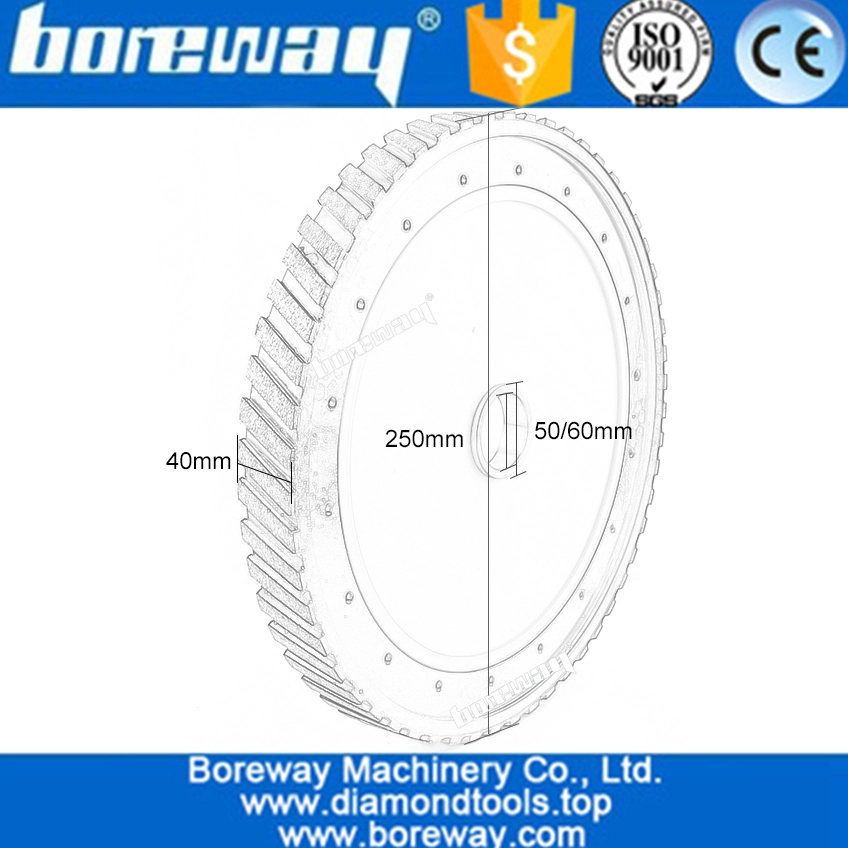

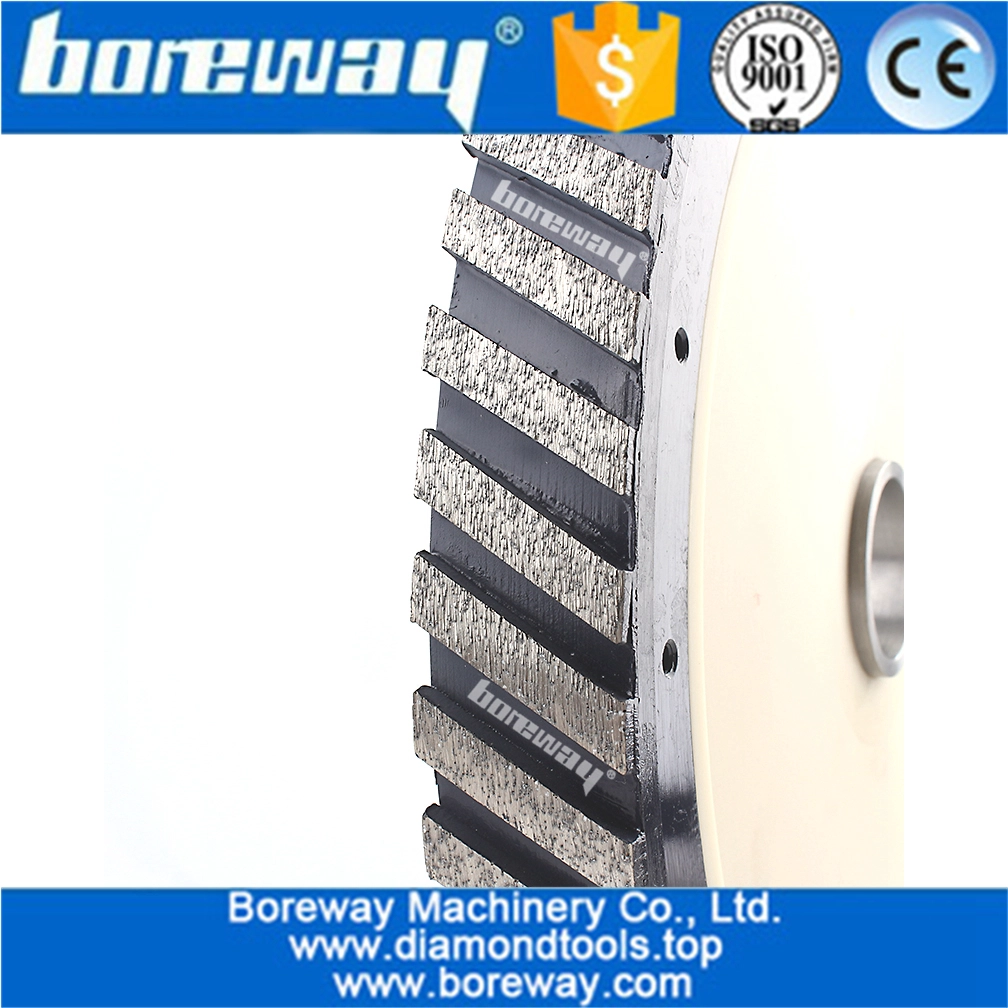

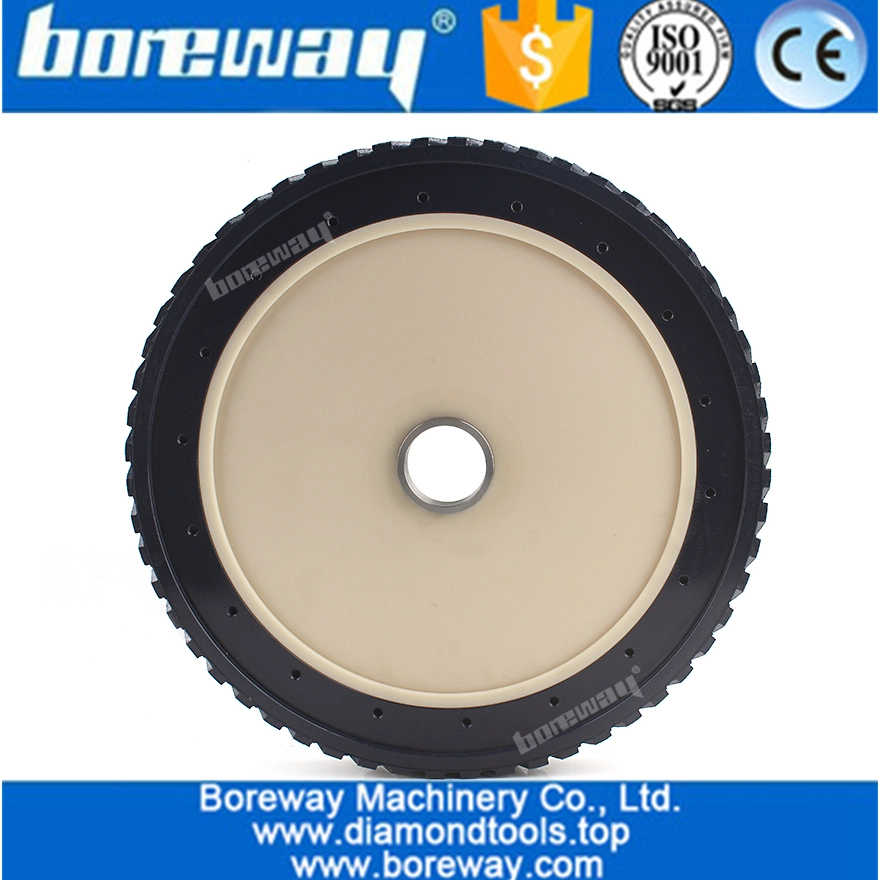

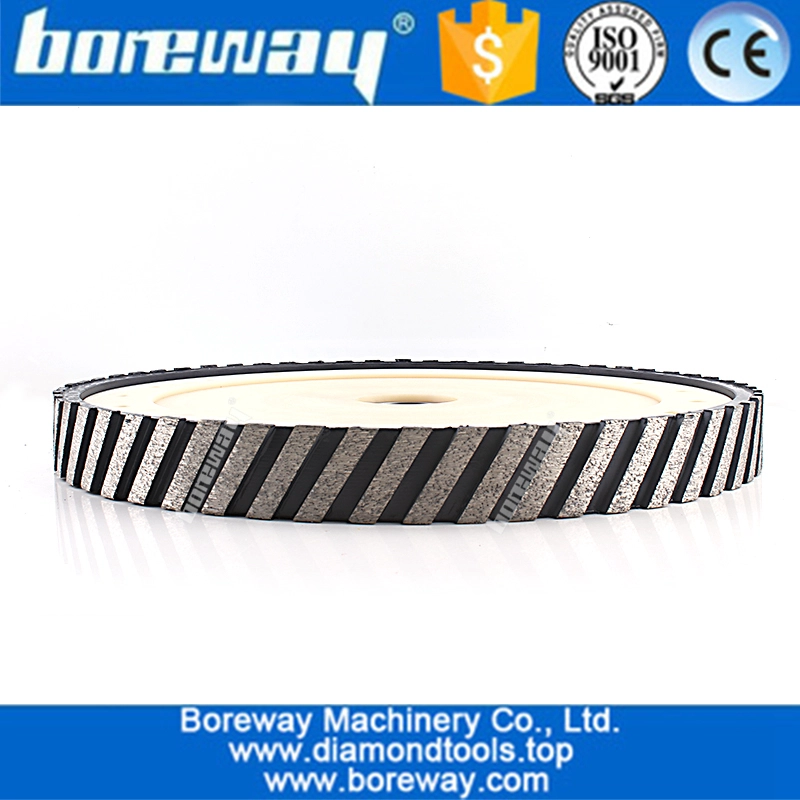

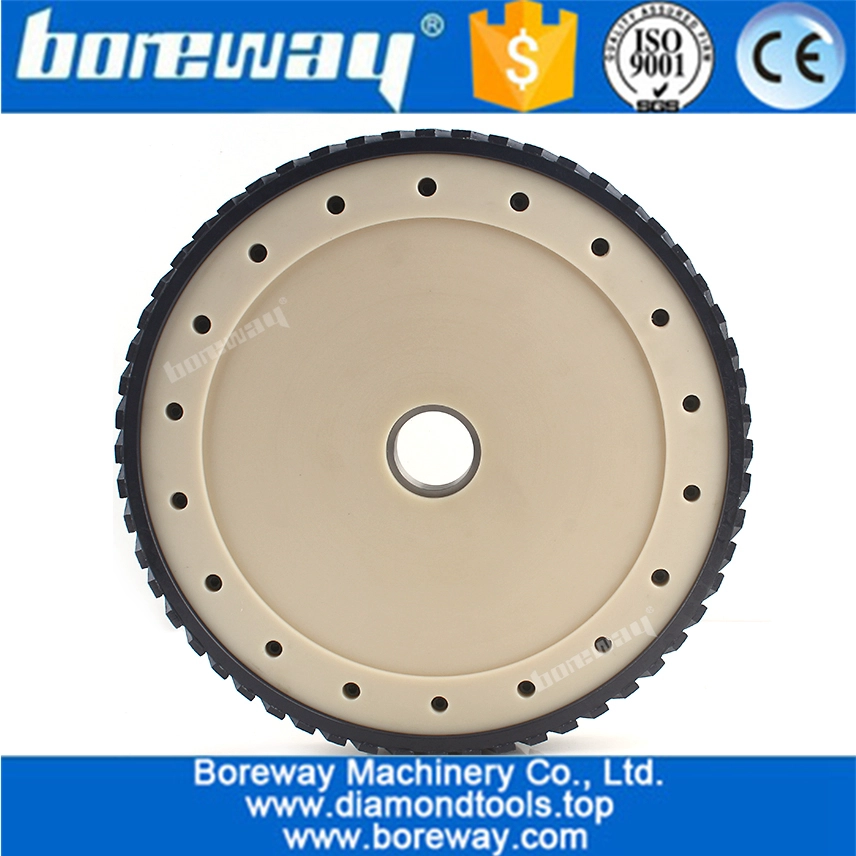

D250mm diamond silent core calibrating milling wheel with segment wide 40mm for grinding granite and marble
- Type: Wet Cutting
- Size: 10 inch
- Outer Diameter: 250mm
- Segment Size: 25mm
- Inner hole: 50mm
- Industry: Diamond milling tools
- Advantage: Good sharpness and long lifespan.
- Machine: Milling machine and bridge cutting machines.
- Applications: Boreway sintered flat diamond forming milling wheel is wet use for milling surface of stone and granite.
| Introduction: |
Diamond silent milling wheels are widely used for grinding surface of granite and marble. With special material,it save lots of weights and make no any noise when working.
| Feature: |
1.Good performance and long lifespan.
2.With feature of high efficiency,accuracy in shape and size.
3.Wet cutting; Nylon body with lightweight; Aebor 50 or 60mm available
2.With feature of high efficiency,accuracy in shape and size.
3.Wet cutting; Nylon body with lightweight; Aebor 50 or 60mm available
4.The unique design with good sharpness allows easy dust removal, low noise and safety.
5.The diamond silent milling wheel was designed for stationary saws and milling machine. It is available in a granite and a marble surface, both options feature an ultra quiet core and high quality segment.
| Specification: |
| Diameter / mm | Segment Width / mm |
Inner Hole / mm | Connection | Grit NO. | Machine |
| 250 300 350 400 |
25 30 40 |
50/ 60 |
Φ10-2 + 2Hole Φ50-3 + 3Hole |
30/40 # 60 # 100 # 200 # |
CNC machine and radial arm machine |
In order to improve the grinding efficiency of grinding wheel, we have some suggestions for the machine speed:
| RPM | Feed rate | Recommended depth |
| 4500 | 400-600mm / min | 3mm |
| Picture: |
| Packing & Delivery: |
1. Tools packing in carton cases;
2. When tools are in large quantities, they are packing in wooden cases.
| Kindly Noted: |
When place order for diamond Milling Wheel please inform the following:
Grit No.
Order Quantity
Dry or Wet Use
Diameter (Inch or mm)
Expected Shipping Date
Special Requirements (If)
Code No. of Diamond Milling Wheel
Diameter or Specifications (Inch or mm)
Material Milling: For Granite, Marble, or other material?
