D300x50H Electroplated Diamond Grinding Polishing Wheel For Granite,Diamond electroplated milling wheel for stone,granite electroplated profiling wheel,CNC grinding wheel for stone

Model Number: BW-DGW-09
Type: Wet use
Diameter:150mm-300mm
Inner hole:50mm
Machine:D300x50H Electroplated Diamond Grinding Polishing Wheel for marble,granite and many other stone is used in CNC machine，milling machine, line machine.
Applications:Wet use for grinding granite,marble,counter and glass,ceramic,tile
Advantage:High efficiency and good stable

Introduction:

D300x50H Electroplated Diamond Grinding Polishing Wheel is suitable for marble, granite and other stone lines, line

plate molding, can also be used for grinding of ceramics, glass, jewelry and other materials, with no

deformation grinding, fast, good finish, wear resistance good, long life and other characteristics, suitable

for CNC machine tools, milling machine, line machine.

Features:

1.Different shapes and sizes are available.

2.Good balance and stable performance.

3.Sintered segment is aggressive for easy and quick stock removal.

Specifications:

The followings are the normal specification of our D300x50H Electroplated Diamond Grinding Polishing Wheel ：

Product Name	Diameter	Thickness	Inner Hole	Application	Shape Type
Diamond grinding wheel	150mm	20/30/40	30	Granite Marble ceramic tile glass	Bullnose Single Dupont Single Bullnose Half Radius Single Threshold Single Edge Ogee Bullnose Bevel Double Ogee Double Radius Top Chamfer Other Types
	200mm	20/30/40	30
	250mm	20/30/40	50
	300mm	20/30/40	50
	350mm	20/30/40	50

The above specification just for a reference.Other specification can be ordered by customers.

Picture:

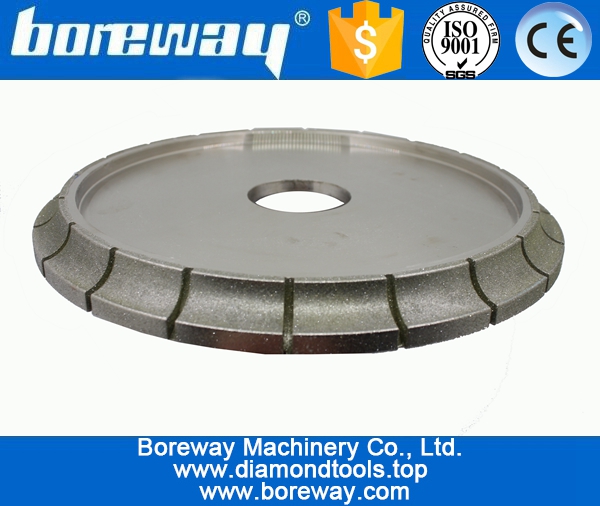

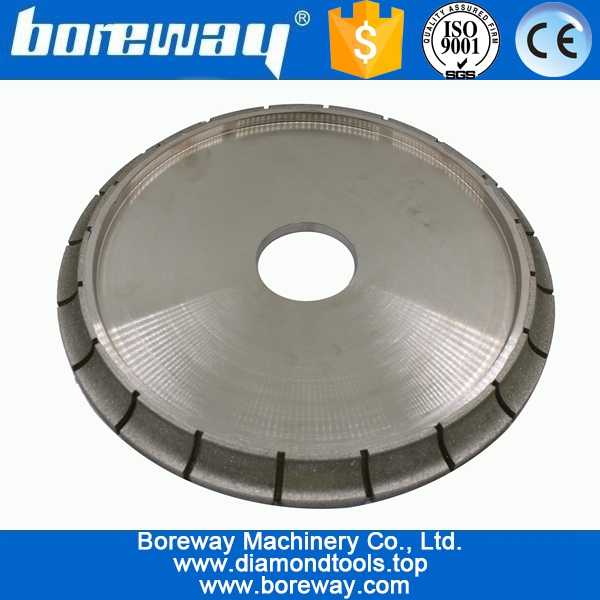

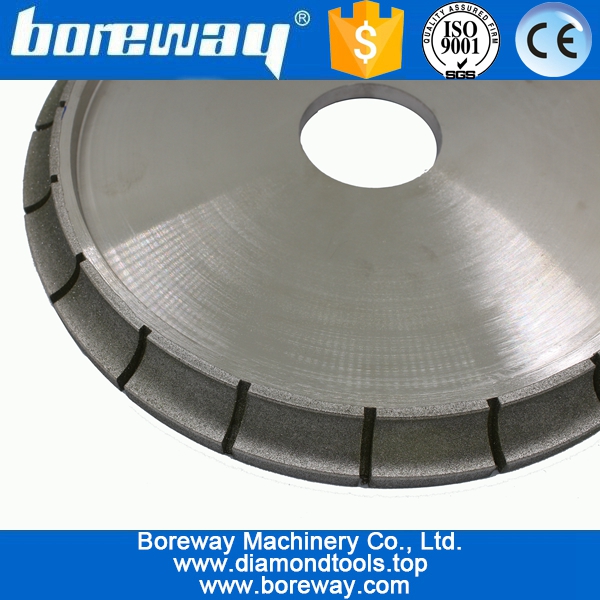

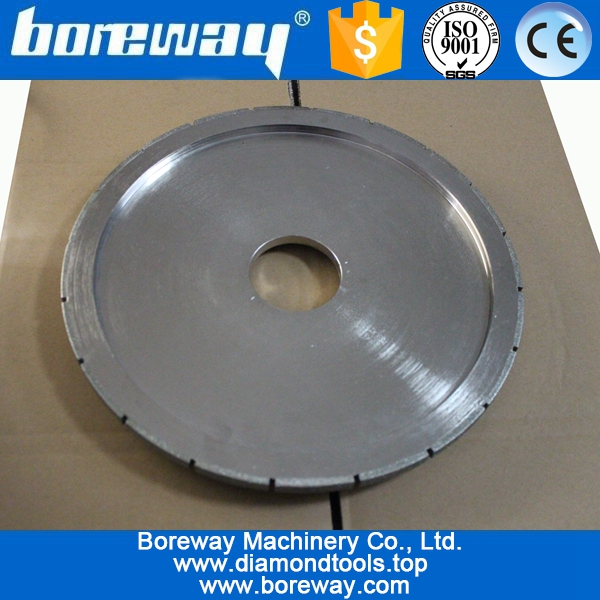

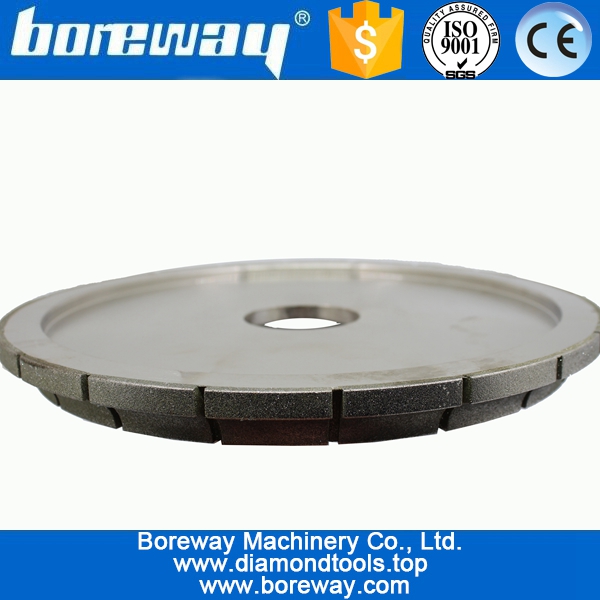

D300x50H Electroplated Diamond Grinding Polishing Wheel
