Diamond Saw Blades for Granite Cutting with "||" Shape Taper Segments
- Model Number: BW-SBG-08
- Use Type: Wet Use
- Diameter: 300mm to 850mm
- Steel core: 2.2mm to 4.5mm
- Welding method: Sinter Welding
- Industry: Diamond Cutting Tools
- Advantage: Good Sharpness And Long Lifespan.
- Machine: Bridge Cutting Machine And Other Large Cutting machine.
- Applications: Fan Edge Cutting Blade With Three-step Segment is Wet use For Cutting Granite.
| Introduction: |
Diamond edge cutting blade with there-step segment,the unique T side face allows ideal debris
removal and better cooling,improves the sharpness and cutting efficiency. Besides,this design
reduces blade stone interface while cutting that will minimize cutting friction and noise.
Premium mesh turbo porcelain wet blade Manufacturer
| Features: |
1.Good continuity,effectively reduce the distance between teeth.
2.Further Strengthen the effect of trimming,reduce the loss of stone.
3.This segment will improve the sharpness and cutting efficiency.
4.High cutting efficiency,meanwhile,it has a long lifespan.
| Specifications: |
The followings are the normal specifications of our fan edge cutting blade with three-step segment:
Diamond Turbo grinding and cutting wet blade manufacturer
|
Product Name |
Diameter |
Steel Core (mm) |
Segment Dimension (mm)
|
Segment Number |
Application |
|
Edge Cutting Blade For Granite |
Ø300 |
2.2 |
43/40*3.2*10(15,20) |
21 |
Granite |
|
Ø350 |
2.2 |
43/40*3.2*10(15,20) |
24 |
||
|
Ø400 |
2.6 |
43/40*3.6*10(15,20) |
28 |
||
|
Ø450 |
3.0 |
43/40*4.0*10(15,20) |
32 |
||
|
Splitting Blade For Granite |
Ø500 |
3.0 |
40*4.0*10(15,20) |
36 |
|
|
Ø550 |
3.6 |
40*4.6*10(15,20) |
40 |
||
|
Ø600 |
3.6 |
40*4.6*10(15,20) |
42 |
||
|
Ø650 |
4.0 |
40*5.0*10(15,20) |
46 |
||
|
Ø700 |
4.0 |
40*5.0*10(15,20) |
50 |
||
|
Ø750 |
4.0 |
40*5.0*10(15,20) |
54 |
||
|
Ø800 |
4.5 |
40*5.5*10(15,20) |
57 |
||
|
Ø850 |
4.5 |
40*5.5*10(15,20) |
58 |
The above specifications are for reference, other specifications can be ordered by customers.
| Product Image |

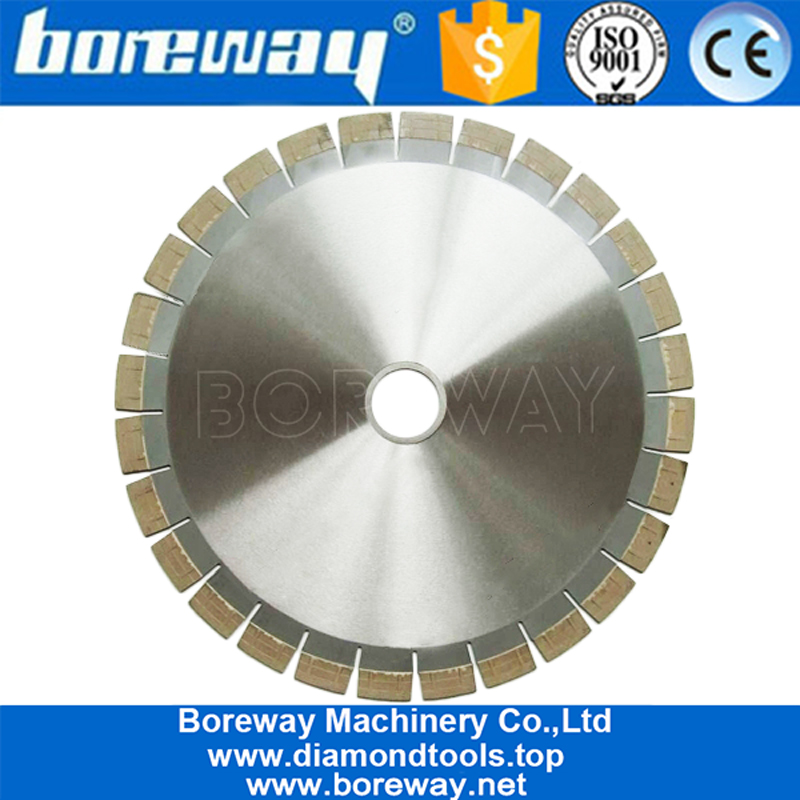

Diamond Saw Blades for Granite Cutting with "||" Shape Taper Segments
| Factory Show |
| FAQ |
1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.
Logistics:
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours
