Diamond drill bits for construction
- Product name: Construction diamond drill bit
- Model: BW-DDB-C
- Diameter: 22-356 mm
- Segment length: 12-24 mm
- Segment width: 3-5.5 mm
- segment height: 10 mm
- Segment number: 3-32 PCS
- Drill bit length: Can be customized
- Applications: Concrete, stone, ceramic, brick an so on
| Product Description: |
These diamond drill bits are usually used for building materials, like marble, granite quartz and so on. The diamond drill bits are used on CNC machine and protable drill machine,each center has a water hole drill is conducive to chip and cooling, and thus has a long service life. Some diamond drill bits are dry use, we have also specifically changed the production process for dry use diamond drill bits to ensure the quality.
Features:
1. Applicable to a variety of handheld drill machine or CNC machine tools.
2. The diamond protrusion uniform, sharp, high drilling efficiency.
3. Using high-quality diamonds and high-speed steel pressing and sintering, can withstand high speed drilling.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Features:
1. Applicable to a variety of handheld drill machine or CNC machine tools.
2. The diamond protrusion uniform, sharp, high drilling efficiency.
3. Using high-quality diamonds and high-speed steel pressing and sintering, can withstand high speed drilling.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
| Specification: |
| Product Name | Diameter | Segment Size | Segment No. | Length | Applications |
| Wet use
construction diamond drill bit |
7/8"(22mm) | 12x3.0x10 | 3 | Can be customized |
Concrete stone masonry ceramic terrazzo brick ... |
| 1"(25mm) | 12x3.0x10 | 4 | |||
| 1.18"(29mm) | 12x3.0x10 | 4 | |||
| 1.25"(32mm) | 16x3.0x10 | 4 | |||
| 1.38"(35mm) | 16x3.0x10 | 4 | |||
| 1.50"(38mm) | 16x3.0x10 | 5 | |||
| 1.63"(42mm) | 16x3.0x10 | 5 | |||
| 1.75"(45mm) | 16x3.0x10 | 6 | |||
| 1.88"(48mm) | 16x3.0x10 | 6 | |||
| 2"(52mm) | 16x3.0x10 | 7 | |||
| 2.25"(57mm) | 22x3.5x10 | 5 | |||
| 2.50"(63mm) | 22x3.5x10 | 6 | |||
| 2.75"(70mm) | 22x3.5x10 | 7 | |||
| 3"(76mm) | 22x3.5x10 | 8 | |||
| 3.25"(82mm) | 22x3.5x10 | 9 | |||
| 3.50"(89mm) | 22x3.5x10 | 10 | |||
| 4"(102mm) | 22x3.5x10 | 10 | |||
| 4.25"(108mm) | 22x3.5x10 | 11 | |||
| 4.50"(114mm) | 22x3.5x10 | 11 | |||
| 4.75"(120mm) | 24x4.0x10 | 11 | |||
| 5"(127mm) | 24x4.0x10 | 11 | |||
| 5.5"(140mm) | 24x4.0x10 | 12 | |||
| 5.75"(146mm) | 24x4.0x10 | 13 | |||
| 6"(152mm) | 24x4.0x10 | 13 | |||
| 6.25"(159mm) | 24x4.0x10 | 14 | |||
| 6.5"(165mm) | 24x4.0x10 | 15 | |||
| 7"(178mm) | 24x4.0x10 | 16 | |||
| 8"(203mm) | 24x4.5x10 | 18 | |||
| 9"(229mm) | 24x4.5x10 | 20 | |||
| 10"(254mm) | 24x4.5x10 | 23 | |||
| 11"(280mm) | 24x5.0x10 | 25 | |||
| 12"(305mm) | 24x5.0x10 | 27 | |||
| 13"(330mm) | 24x5.5x10 | 30 | |||
| 14"(356mm) | 24x5.5x10 | 32 |
Other specification can be customized according to need.

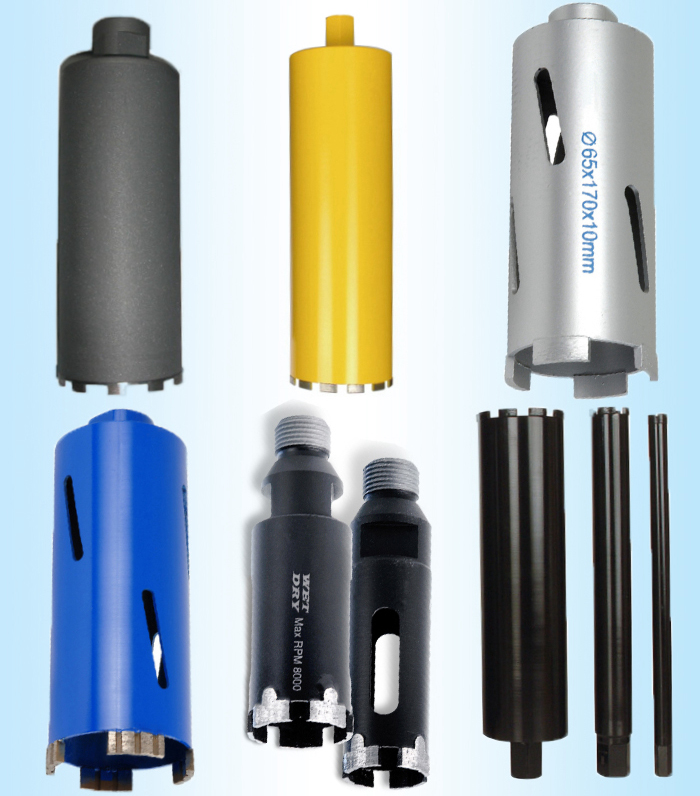

| Images: |
If you want know more details of the diamond drill bits, please contact us.
Notice:
1.Before purchase, please provide the model of the machine.
2.Please provide the material before purchase.
3.Other specifications can be customized according to requirements.
1.Before purchase, please provide the model of the machine.
2.Please provide the material before purchase.
3.Other specifications can be customized according to requirements.
