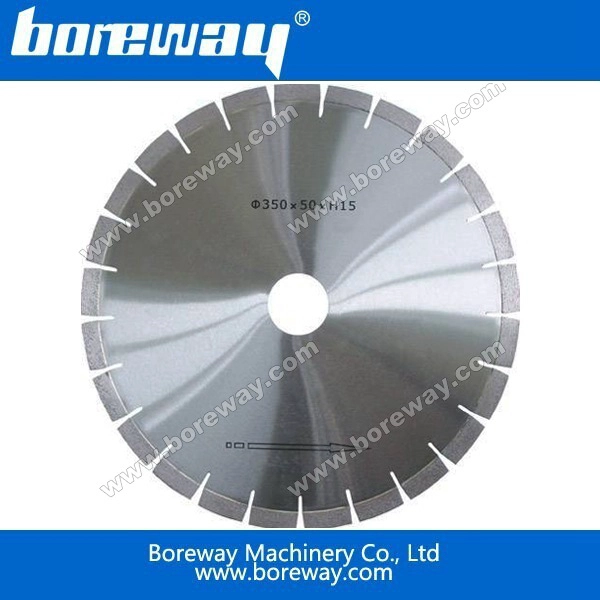

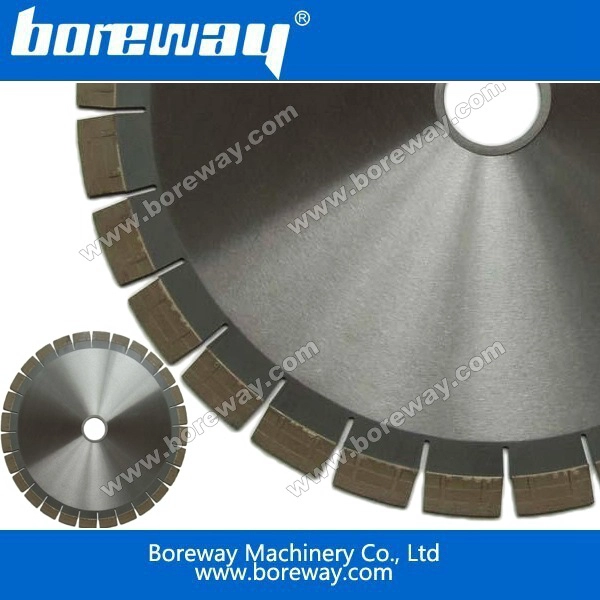

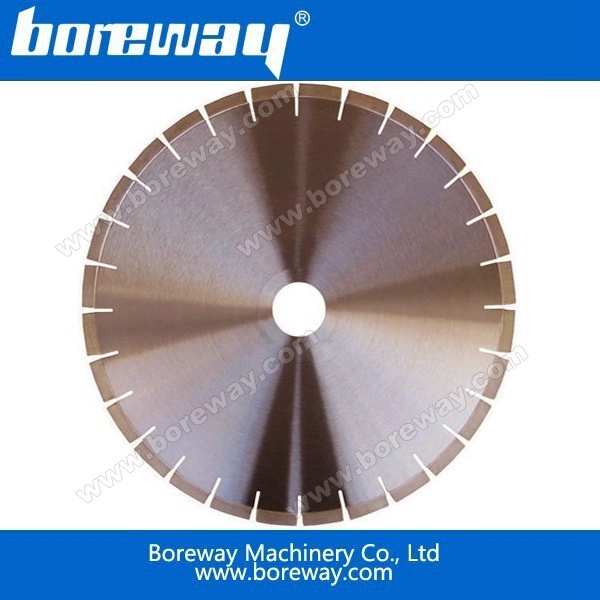

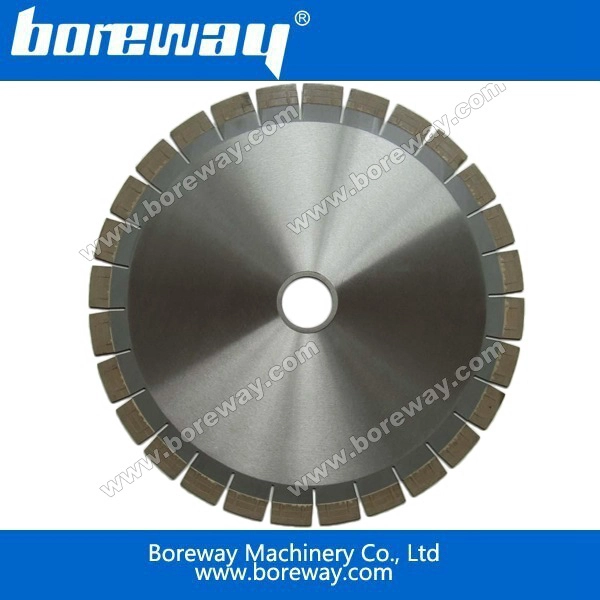

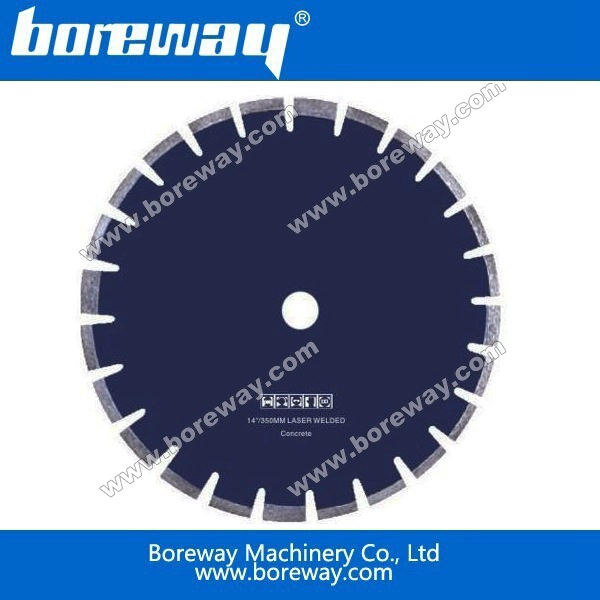

Diamond professional purpose concrete laser welded diamond saw blade
- Model Number: BW-LC-00
- Type: Wet or dry use
- Diameter: 300m-1200mm
- Segment Width: 3.2mm-5.4mm
- Segment Height: 8mm-12mm
- Industry: Diamond tools
- Welding method: Laser welding
- Advantage: Good sharpness and long lifespan.
- Machine: Bridge cutting machine and other large cutting machine.
- Applications: Diamond concrete laser welded diamond saw blade for cutting concrete.
Introduction:
Diamond concrete laser welded diamond saw blade for slab edge cutting suitable for bridge cutting machine, manual handling cutting machine or table cutting machine.Better cutting speed and longer life than normal segmented saw blades.
Features:
1.Long lifespan,high stability.
2. Universal dry and wet cutting blades.
Specifications:
The followings are the professional purpose concrete laser welded diamond saw blade :
|
Product |
Item Number |
Diameter |
Width |
Height |
Arbor |
Segment |
|
Professional |
LC02012 |
12”/300 |
0.125/3.2 |
8/10 |
25.4 |
21 |
|
LC02014 |
14”/350 |
0.141/3.6 |
8/10 |
25.4 |
24 |
|
|
LC02016 |
16”/400 |
0.141/3.6 |
8/10 |
25.4 |
28 |
|
|
LC02018 |
18”/450 |
0.157/4.0 |
10/12 |
25.4 |
32 |
|
|
LC02020 |
20”/500 |
0.157/4.0 |
10/12 |
25.4 |
36 |
|
|
LC02022 |
22”/550 |
0.157/4.0 |
10/12 |
25.4 |
40 |
|
|
LC02024 |
24”/600 |
0.181/4.6 |
10/12 |
25.4 |
42 |
|
|
LC02026 |
26”/650 |
0.181/4.6 |
10/12 |
25.4 |
46 |
|
|
LC02028 |
28”/700 |
0.181/4.6 |
10/12 |
25.4 |
50 |
|
|
LC02030 |
30”/750 |
0.181/4.6 |
10/12 |
25.4 |
54 |
|
|
LC02032 |
32”/800 |
0.181/4.6 |
10/12 |
25.4 |
46 |
|
|
LC02036 |
36”/900 |
0.210/5.4 |
10/12 |
25.4 |
64 |
|
|
LC02040 |
40”/1000 |
0.210/5.4 |
10/12 |
25.4 |
70 |
|
|
LC02048 |
48”/1200 |
0.210/5.4 |
10/12 |
25.4 |
80 |
Other specifications are available upon request.
