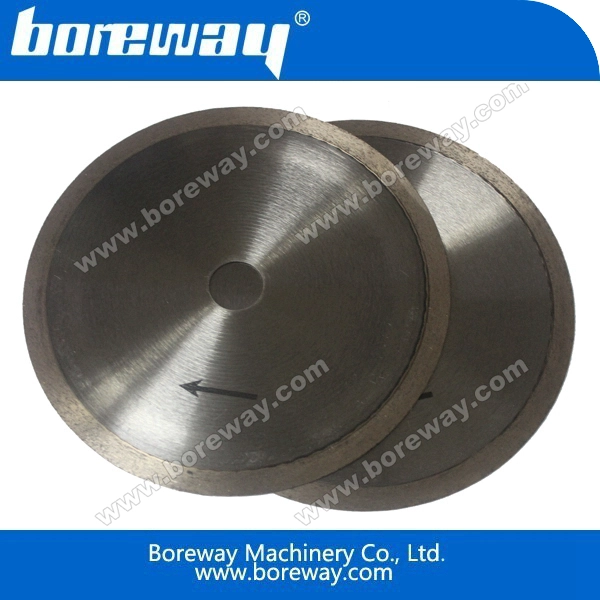

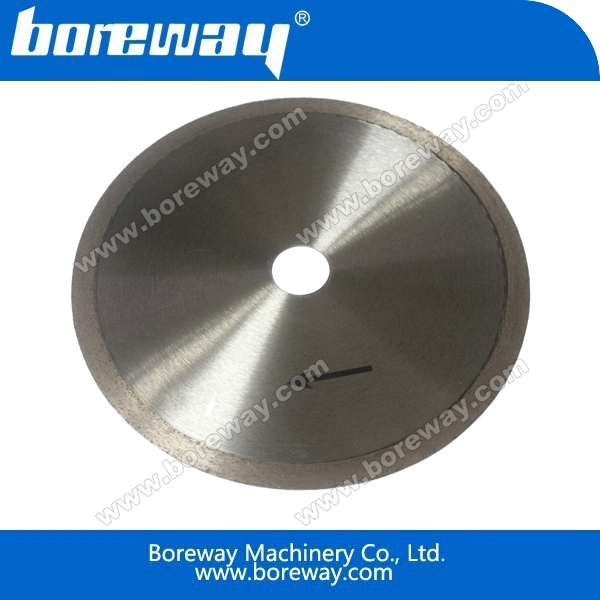

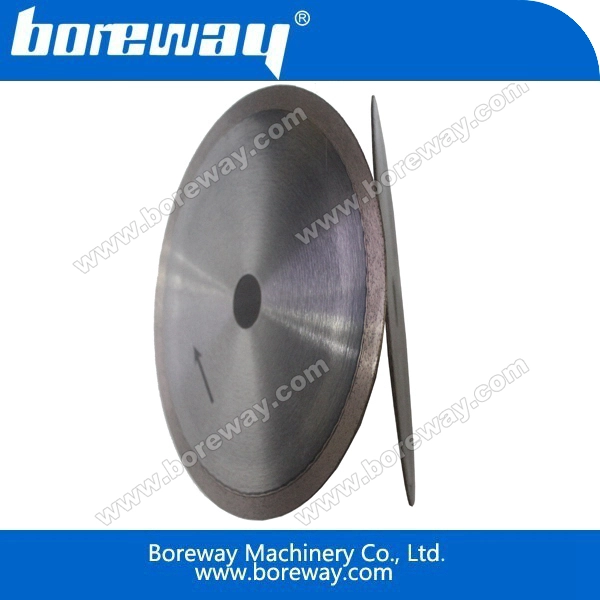

Diamond saw blade for cutting glass magnesium board
- Model Number: BW-DSBGMB-001
- Type: Wet Use
- Diameter: 350mm to 2000mm
- Inner hole: 50mm to 120mm
- Segment number: 26 to 128
- Applications: Boreway diamond saw blade is wet use for cutting glass magnesium board.
- Machine: Hand-held machine and other cutting machine.
- Industry: Diamond cutting tools
- Welding method: Sinter welding
- Advantage: Good sharpness high speed and long lifespan.
This high quality diamond saw blade for glass magnesium board is suitable for hand-held cutting
machine or other cutting machine,this saw blade professional cutting glass magnesium board,due
to the diamond cutting blade for small and medium size,so it so easy to use,the blade is smooth
cutting and no distortion.
Features:1.Matrix used high quality alloy steel,strict adherence to standards,sturdy and durable.
2.Segment use high quality formula,good sharpness and long lifespan.
3.Matrix and segment reasonable mix,faster cutting
4.Factory direct supplier,reliable quality and cheap price.
5. We provide the superior and professional sale service.
7. We can also manufacture Diamond Saw Blade according to customers' needs.8.Suitable for stone Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine.
Specifications:
The followings are the normal specifications of our saw blade for glass magnesium board:
Name |
Diameter |
Inner hole |
Segment size |
Segment number |
Matrix thickness |
Medium cutting blade |
350mm |
50mm |
40*3.2*9 |
26 |
2.3mm |
400mm |
50mm |
40*3.4*9 |
28 |
2.8mm |
|
450mm |
50mm |
40*3.6*9 |
32 |
2.8/3.0mm |
|
500mm |
50mm |
40*4.0*9 |
36 |
3.2mm |
|
600mm |
50mm |
40*4.5*9 |
42 |
3.6mm |
|
700mm |
50mm |
40*5.2*9 |
42 |
4.0/4.2mm |
|
800mm |
50mm |
40*5.7*9 |
46 |
4.2mm |
|
Medium and large cutting blade |
900mm |
100mm |
22*5.7*13 |
88/64 |
4.5mm |
1000mm |
80/100/120mm |
22*7.0*13 |
70 |
5.5mm |
|
1100mm |
100mm |
22*7.0*13 |
74 |
5.5mm |
|
1200mm |
100mm |
22*7.3*13 |
92 |
6.0mm |
|
1300mm |
100mm |
22*7.3*13 |
88/96 |
6.0mm |
|
1400mm |
100mm |
22*8.0*13 |
92 |
6.5mm |
|
1500mm |
100mm |
22*7.0*13 |
96 |
5.5mm |
|
1600mm |
100mm |
22*7.0*13 |
108 |
5.5mm |
|
1700mm |
100mm |
22*7.0*13 |
120 |
5.5mm |
|
1800mm |
100mm |
22*8.0*13 |
120 |
6.5mm |
|
1900mm |
100mm |
22*8.0*13 |
128 |
5.5mm |
|
2000mm |
100mm |
22*7.0*13 |
128 |
5.5mm |
The above specifications are for reference, other specifications can be ordered by customers.
