Diamond standard stubbing wheel for stone,CNC diamond stubbing wheel,stone diamond grinding wheel,drain board grinding wheel for granite

Model Number:BW-DSSW
Type:Wet Use
Diameter:50mm to 100mm
Inner hole: 50mm
Segment height:20mm to 40mm
Applications:Drain board wheels are used for milling and materialremoval for stones.
Machine:Drain board wheels are used for CNC machine or other stone machine.
Advantage:Good performance and high efficiency

Introduction:
Drain board wheels are used for surface milling and material removal for various granite and marble

stone on router machines.Their merits are high efficiency of production,accuracy in shape and size.

Features:
1.The unique design with good sharpness allows easy dust removal, low noise and safety.

2.With feature of high efficiency,accuracy in shape and size.

3.Good performance and long lifespan.

Specifications:
The followings are the normal specifications of our drain board wheels:

Diameter/mm	Segment height/mm	Inner hole/mm	Connection	Grit No.	Machine
50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and radial arm machine
	30
	40
86	20	50	Φ50-3+3Hole
	30
	40
100	20		Φ50-3+3Hole
	30
	40

The above specification just a reference for customers.Other specifications can be ordered by customers.

Picture:

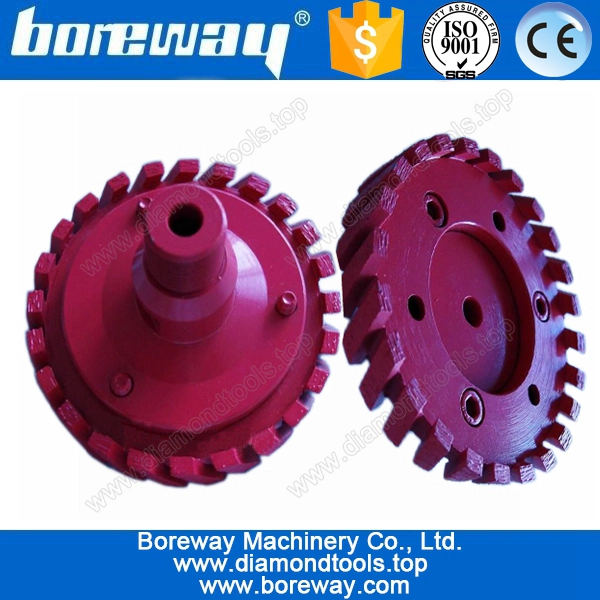

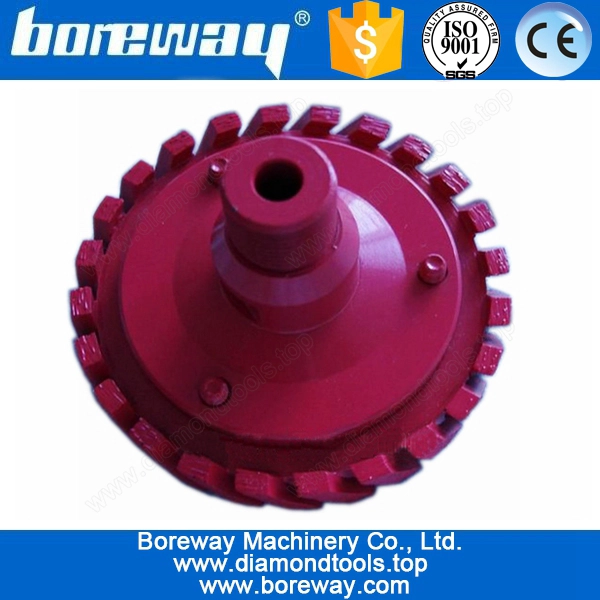

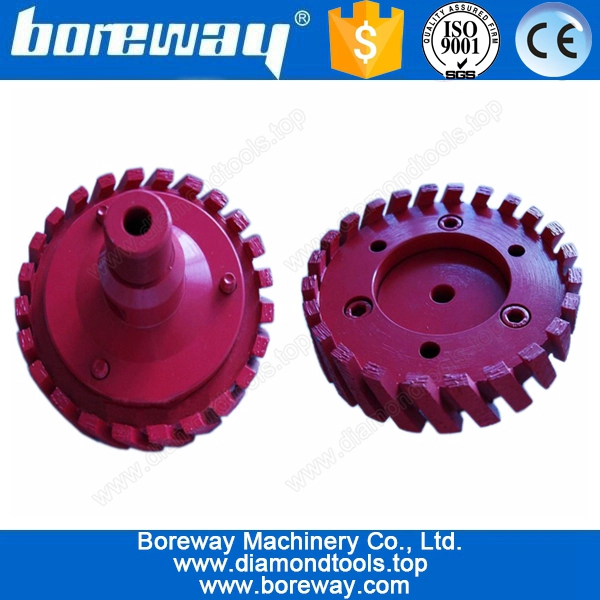

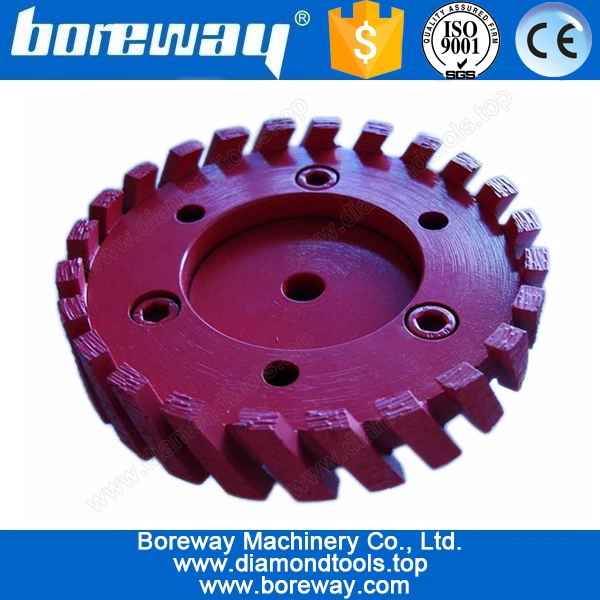

drain board wheels
