Metal Bond & Resin Filled Zero Tolerance Grinding Wheel

  • Model Number:BW-ZTW-M02
  • Diameter:From 25mm to 100mm
  • Use Type:Wet Use
  • Wheel Type:Resin filled
  • Segment Length:20mm,35mm,45mm
  • Connection:M14, 5/8”-11,1/2"G
  • Performance:Hightly stable.
  • Water Quantity Needed:Medium
  • Grit No.:Rough,Medium,Hard (Coarse,Medium,Fine)
  • Machine:Hand-operated machine and CNC Tools
  • Function:Fast stock removal with center water feed.
  • Grinding result:High gloss and lasting shining.
  • Usage:For milling,grinding and polishing stone,drilling sink holes,masonry holes.

Introduction:

Metal Bond & Resin Filled Zero Tolerance Grinding Wheel 1" (25mm) to 4"(100mm) for grinding and polishing sink holes on the slab,

 kitchens, countertops, etc., which is the most effective way to grind and polish the tight radius.



Metal Bond & Resin Filled Zero Tolerance Grinding Wheel are are designed for stock removal on granite marble by grinding away excess

stone. Resin-filled wheel: Excellent for stock removal, resin-filled design greatly reduces bounce and minimizes chipping.

These sink wheels are the fastest way to remove material after cutting out sink holes. They are used for very aggressive grinding

applications and removal of stock on variety materials including granite, concrete, limestone, marble, block, terazzo and more.


Features:

1.High efficiency,long lifespan and fast milling speed.

2.Perfect balance with zero vibration and stable performance.

3.Smoother milling without stone edge damage.

4.Greatly reduces bounce and minimizes chipping.


Specifications:

The followings are the normal specifications of our Metal Bond & Resin Filled Zero Tolerance Grinding Wheel :


Code No.

Diameter

Grit No.

Working
Method

Segment
Length

Bore

 BW-ZTW-M02-01

25mm(1")

Rough
Medium
Hard

Wet or Dry

20mm

35mm

45mm

M14
 5/8"-11

1/2”G

 BW-ZTW-M02-02

50mm(2")

 BW-ZTW-M02-03

75mm(3")

 BW-ZTW-M02-04

100mm(4")


The above specifications are for reference, other specifications can be ordered by customers.

Quality:Premium.



Go to Catalogue of Zero Tolerance Grinding Wheel



Related Pictures:

The following is a zero tolerance wheel several common forms:

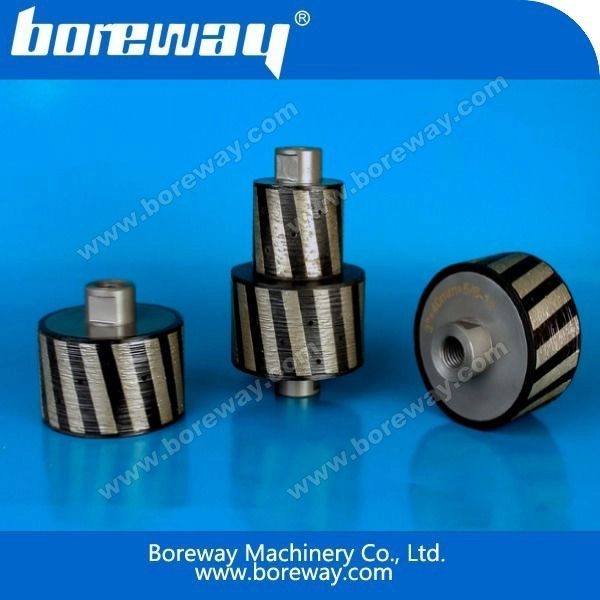

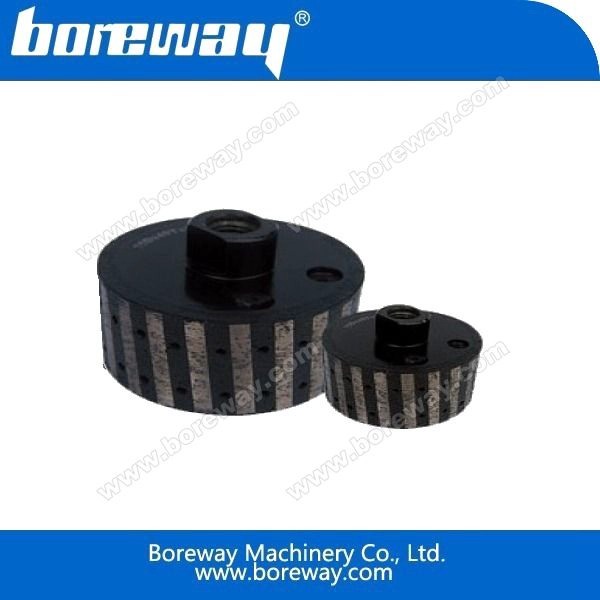

Segmented Zero Tolerance Grinding Wheel:


Continuous Zero Tolerance Grinding Wheel:

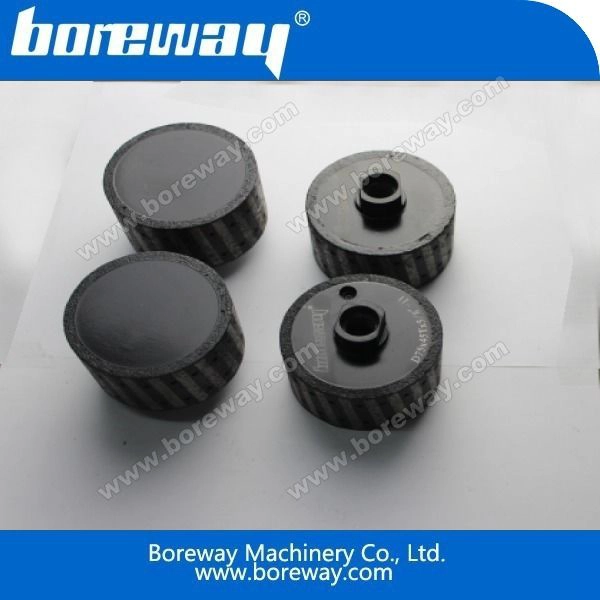

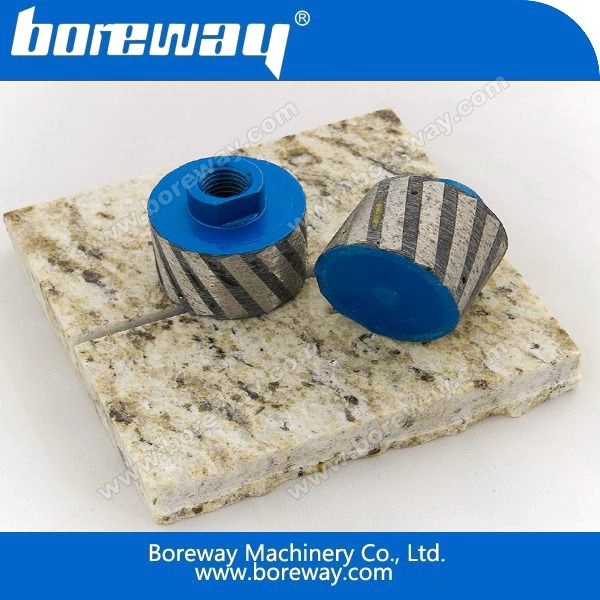

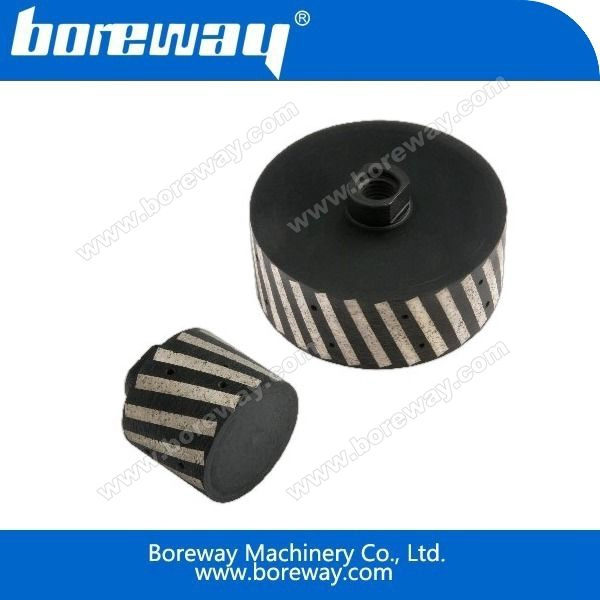

Resin Filled  Zero Tolerance Grinding Wheel:


Vacumm brazed zero tolerance grinding wheel:


Resin Bond Diamond Drum Wheels:
