Supply 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G
- Model Number:BW-DRB-01-01-08
- Type:Wet Use
- Diameter:25mm
- Length size:40mm
- Connection:1/2G"
- Advantage:High efficiency and long lifespan.
- Machine:CNC machine,radial arm machine
- Applications:30# CNC Diamond Finger Bit For Granite are used for cut granite,engineered stone and marble and other material
Introduction:
30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G are usually use after diamond core drill bits,
fast removing dust,diamond sink wheel.
They are ideal for fast stock removal as well as truing up saw lines, which is designed to cut granite, engineered
stone and marble,counter tops, kitchen tops and basins.
Usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole.
Center water feed holes in each bit.
Wet use only.
Feature:
1.Faster Speed and Lasting longer
2. Less Noise and Low Ampere
Specifications:
The following are the normal specifications about 30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G：
|
Diameter |
Bore (mm) |
Segment Length |
Segment No. |
|
20mm (3/4") |
1/2 Gas |
40mm |
4-6pcs |
|
25mm (1") |
|||
|
30mm (1-1/4") |
|||
|
35mm (1-3/8") |
|||
|
40mm (1-5/8") |
|||
|
50mm (2") |
|||
|
60mm (2-3/8") |
The above specifications are for reference, other specifications can be ordered by customers.
Picture:

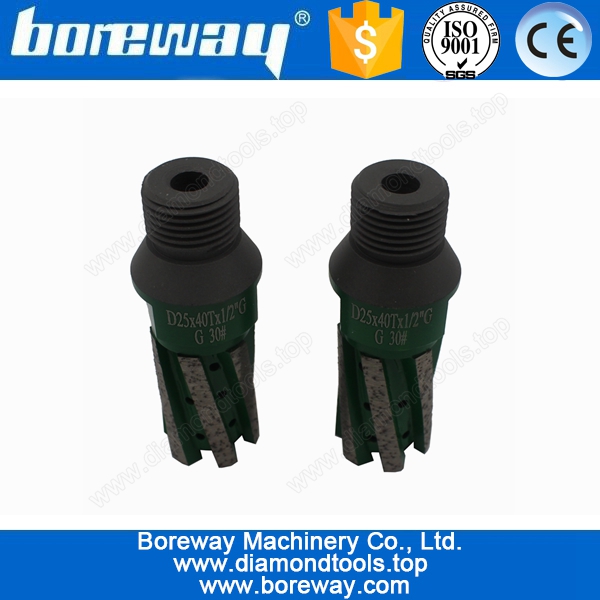

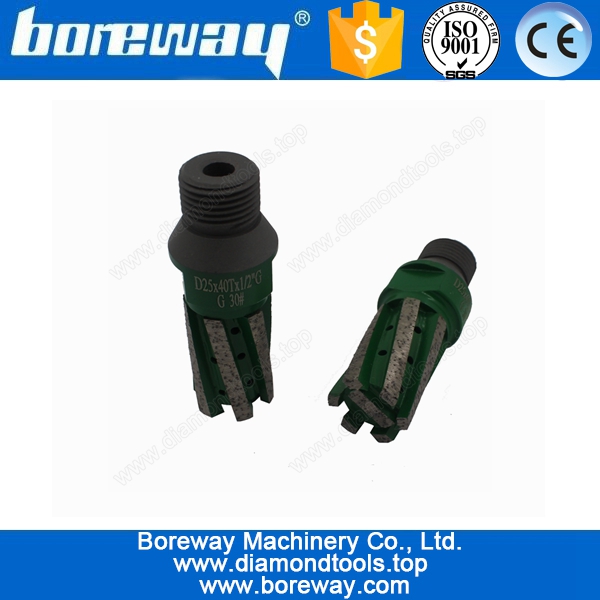

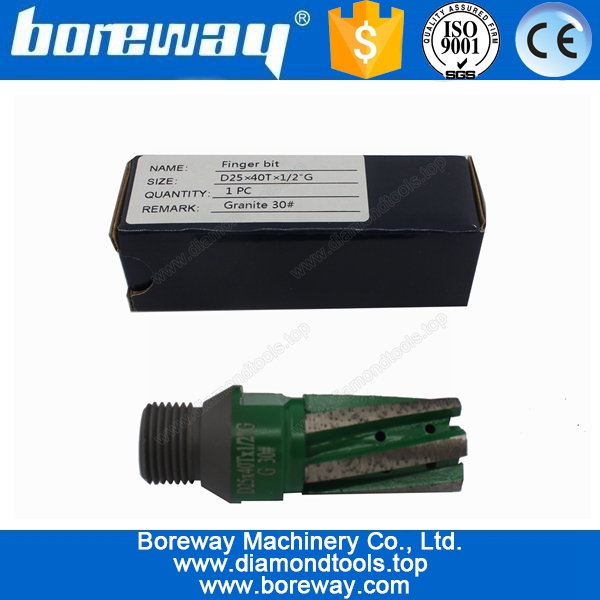

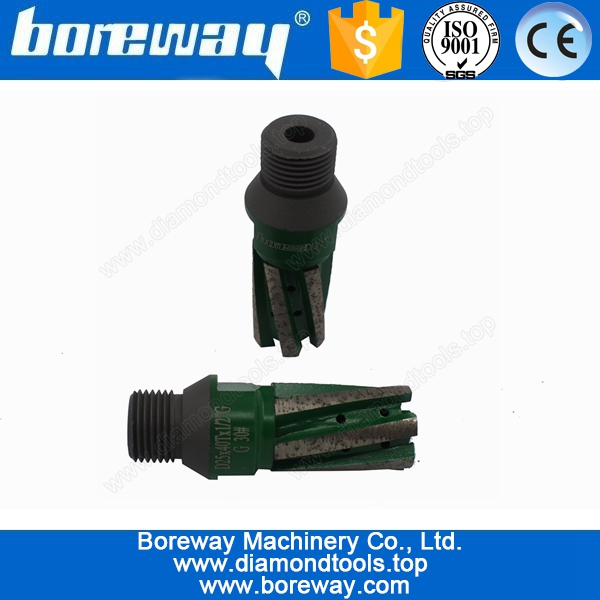

30# CNC Diamond Finger Bit For Granite D25*40T*1/2”G
