Supply Diamond Finger Bit CNC Drill Bit For Stone D25*60T*1/2"G
- Model Number:BW-DRB-04
- Type:Wet Use
- Diameter:25mm
- Length size:60mm
- Connection:1/2"G
- Machine:CNC machine,radial arm machine
- Applications:Diamond Finger Bit CNC Drill Bit For Stone D25*60T*1/2"G are used for cut granite,engineered stone and marble and other material
- Advantage:High efficiency and long lifespan.
Introduction:
Diamond Finger Bit CNC Drill Bit For Stone D25*60T*1/2"G are usually use after diamond core drill bits,
fast removing dust,diamond sink wheel.
They are ideal for fast stock removal as well as truing up saw lines, which is designed to cut granite, engineered
stone and marble,counter tops, kitchen tops and basins.
Usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole.
Center water feed holes in each bit.
Wet use only.
Feature:
1.Faster Speed and Lasting longer
2. Less Noise and Low Ampere
Specifications:
The following are the normal specifications about Diamond Finger Bit CNC Drill Bit For Stone D25*60T*1/2"G:
|
Diameter |
Bore (mm) |
Segment Length |
Segment No. |
|
20mm (3/4") |
1/2 Gas |
40mm |
4-6pcs |
|
25mm (1") |
|||
|
30mm (1-1/4") |
|||
|
35mm (1-3/8") |
|||
|
40mm (1-5/8") |
|||
|
50mm (2") |
|||
|
60mm (2-3/8") |
The above specifications are for reference, other specifications can be ordered by customers.
Picture:

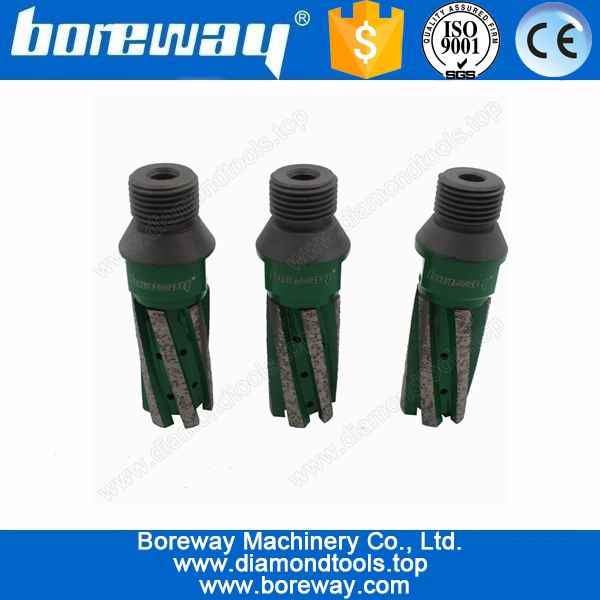

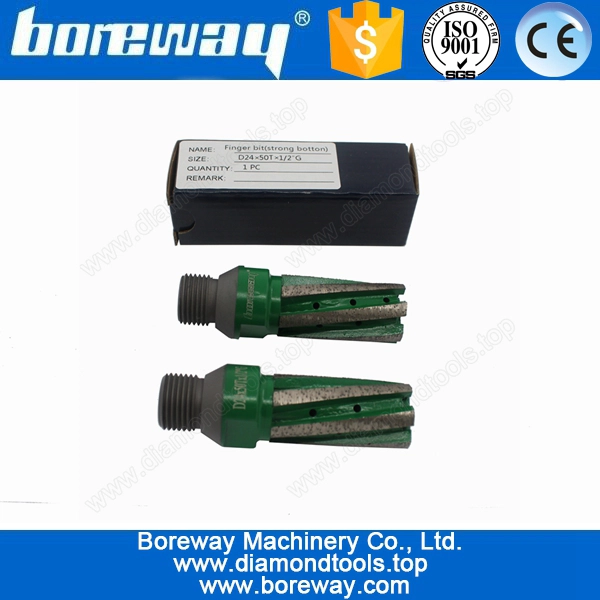

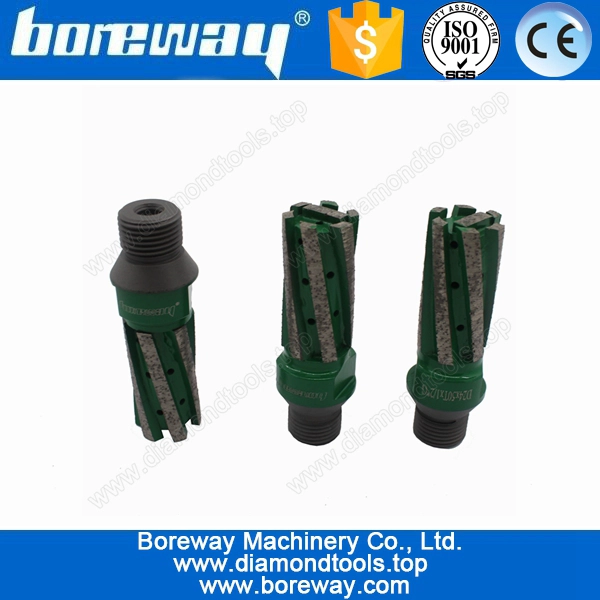

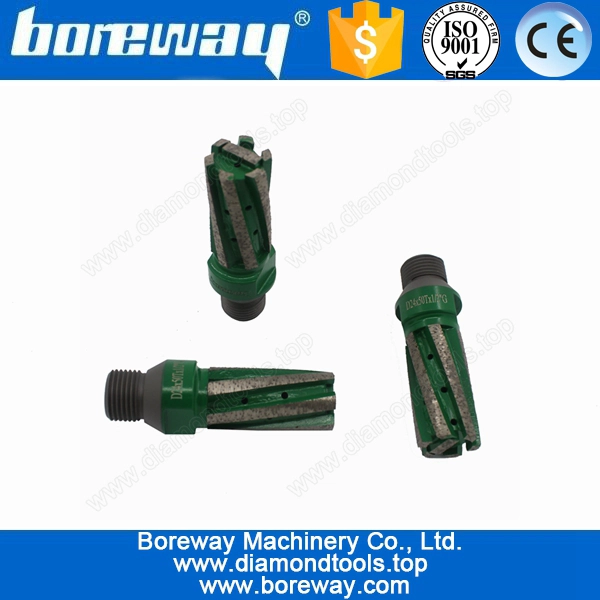

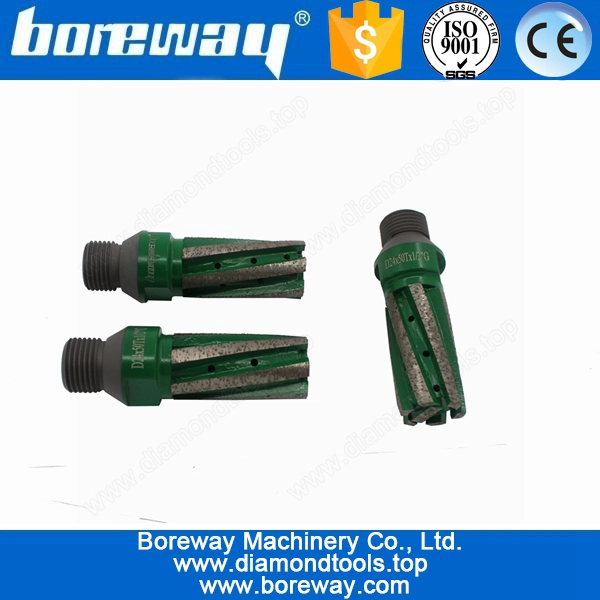

Diamond Finger Bit CNC Drill Bit For Stone D25*60T*1/2"G
Related product:
Diamond Finger Bit Tip For Stone D25*50T*M14
