V shape electroplated diamond grinding wheel for ceramic,diamond electroplated grinding wheel for stone,v shape glass profiling wheel,electronic grinding wheel for stone

Model Number: BW-DGW-05
Type: Wet use
Diameter:140mm
Thickness:20mm
Inner hole:30
Machine:V shape electroplated diamond grinding wheel is used in CNC machine，milling machine, line machine.
Applications:V shape electroplated diamond grinding wheel is wet use for grinding granite,marble,counter and glass,ceramic,tile
Advantage:Good sharpness and good performance

Introduction:

V shape electroplated diamond grinding wheel is suitable for marble, granite and other stone lines, line

plate molding, can also be used for grinding of ceramics, glass, jewelry and other materials, with no

deformation grinding, fast, good finish, wear resistance good, long life and other characteristics, suitable

for CNC machine tools, milling machine, line machine.

Features:

1.Different shapes and sizes are available.

2.Good balance and stable performance.

3.Sintered segment is aggressive for easy and quick stock removal.

Specifications:

The followings are the normal specification of our V shape electroplated diamond grinding wheel:

Product Name	Diameter	Thickness	Inner Hole	Application	Shape Type
Diamond grinding wheel	150mm	20/30/40	30	Granite Marble ceramic tile glass	Bullnose Single Dupont Single Bullnose Half Radius Single Threshold Single Edge Ogee Bullnose Bevel Double Ogee Double Radius Top Chamfer Other Types
	200mm	20/30/40	30
	250mm	20/30/40	50
	300mm	20/30/40	50
	350mm	20/30/40	50

The above specification just for a reference.Other specification can be ordered by customers.

Picture:

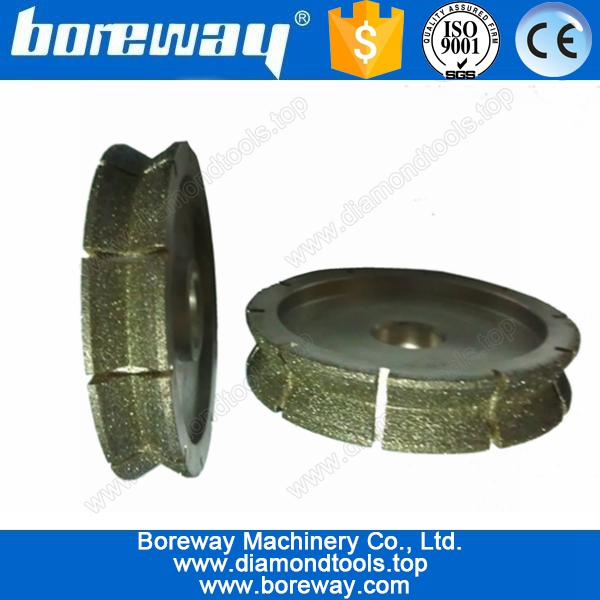

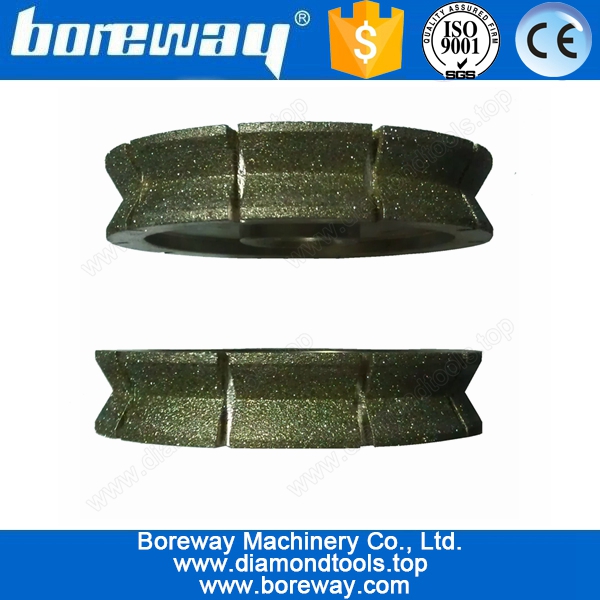

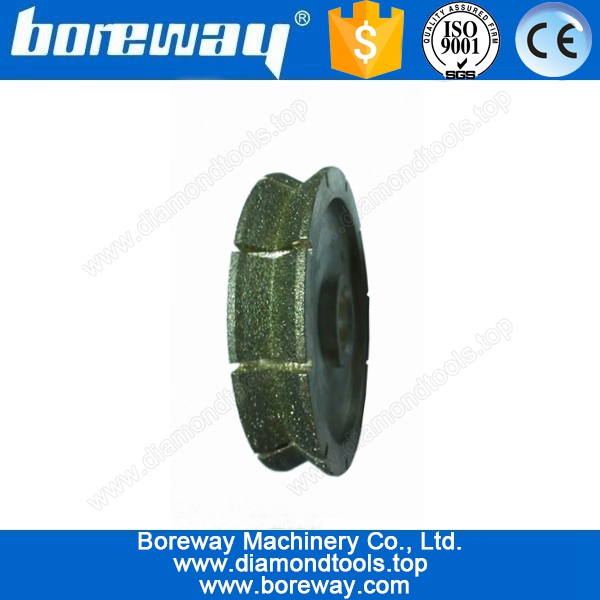

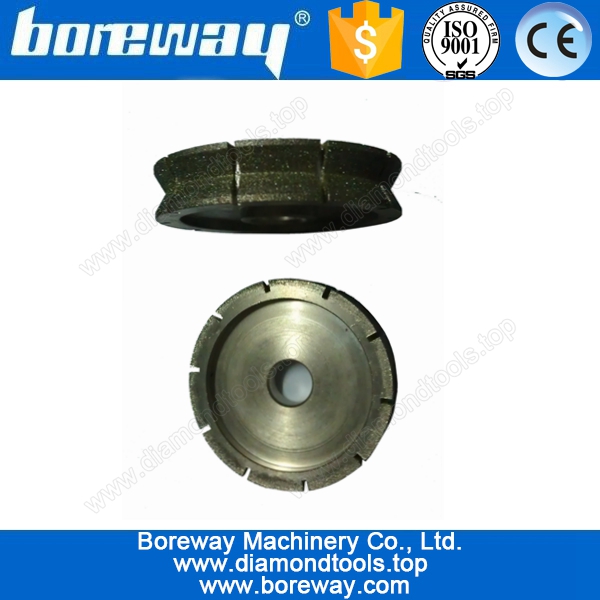

v shape electroplated diamond grinding wheel for ceramic
