Home > Product > Vacuum Brazed Diamond Tools > Vacuum Brazed Diamond Wire Saw & Bead > Vacuum brazed wire saw for cutting stone,diamond vacuum brazed wire saw
Vacuum brazed wire saw for cutting stone,diamond vacuum brazed wire sawVacuum brazed wire saw for cutting stone,diamond vacuum brazed wire sawVacuum brazed wire saw for cutting stone,diamond vacuum brazed wire sawVacuum brazed wire saw for cutting stone,diamond vacuum brazed wire saw

Vacuum brazed wire saw for cutting stone,diamond vacuum brazed wire saw

  • Product Model:BW-VBWS-00
  • Diameter:11mm-7.2mm
  • Bead Length:12.5/11.0mm-9mm
  • Bead Numbers:28/30/32
  • Grit:30#~40#
  • Use:Wet use
  • Reinforcement:Spring/Plastic
  • Usage:For quarrying,Block Squaring,stone profiling
  • Advantage:High efficiency and long lifespan

Induction:

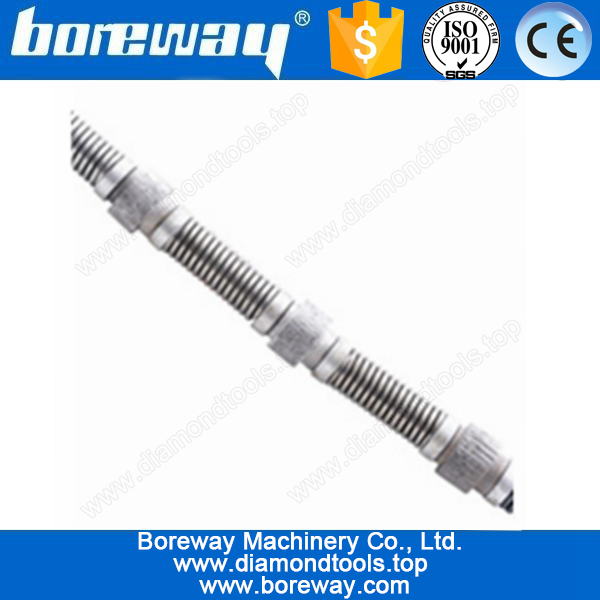

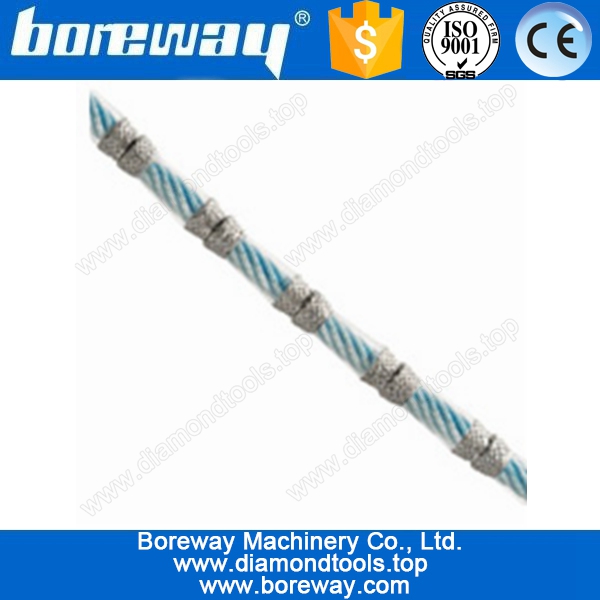

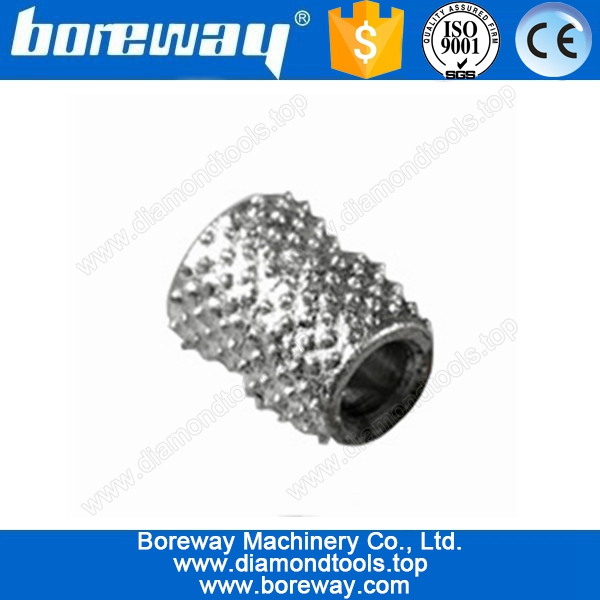

Vacuum Brazed wire saw come with double arrow design and pattern-set diamond on steel body to extend tool life and make

full use of diamonds for best cutting efficiency.Extra aggressive on marble and limestone quarrying,block squaring, profiling or

 slab cutting.Could be used wet or dry, best with wet cutting for tool life concern.



Feature:

1,Vacuum brazed wire saw has high bonding strength.
2,High cuting efficiency
3,Good life span.



Specification:

There are normal specification of vacuum brazed wire saw:


Diameter
(Inch/mm)

Bead Length
(mm)

Bead Numbers
(pcs/meter)

Grit Size(#)

Reinforcement

Application

ø11.0mm

12.5/11.0

28/30/32

30#~40#

Spring/Plastic

Quarrying/Block Squaring

ø10.0mm

12

28/30/32

30#~40#

Spring/Plastic

Quarrying/Block Squaring

ø8.8mm

11

28/30/32

30#~40#

Spring/Plastic

Stone Profiling

ø7.2mm

9

28/30/32

30#~40#

Spring/Plastic

Slab Cutting


The above specification just a reference for customers.Other specification can be ordered by clients.


Picture:

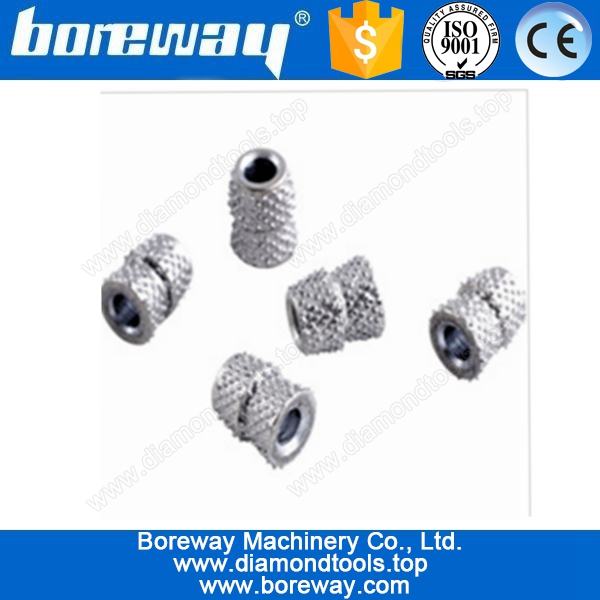

vacuun brazed wire saw
