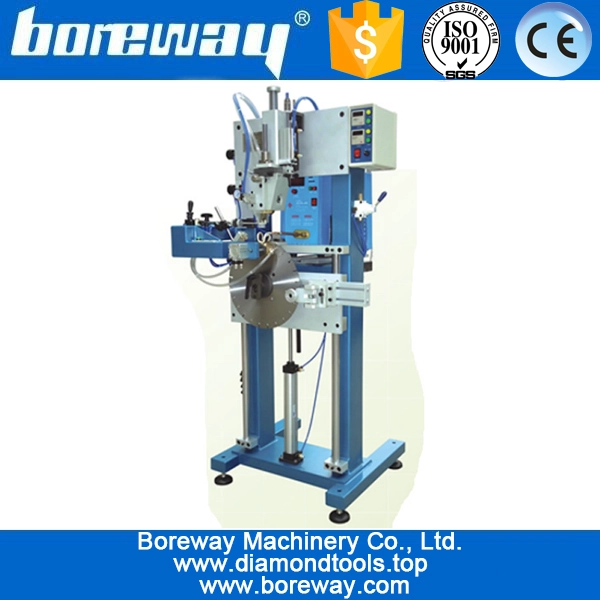

Automatic brazing welding frame for circular saw
- Model:BWM-GHA280/1300,BWM-GHA280/2000,BWM-GHA280/2500
- Diameter:280mm-1300mm,280mm-2000mm.280-2500mm
- Segment thickness(max):18mm
- segment height(max):25mm
- Brazing capacity :7-10 discs per hour
- Advantage：We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Introduction：
High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.
Features:
Display & adjustment device for segment centering adjustment Patented design-arrow point segment clamp.Improved precision & durability.Segment clamp is made of Ceramic alloy material for improved durability & heat resistance.
Specification:
Brazing diameter(for circular saw)280-1300/280-2000/280-2500(mm) Maximum segment thickness 18mm,segment height 25mm Brazing capacity 7-10 discs per hour (for diameter 350mm) Positioning accuracy : Surface of segment tolerance:±0.05,Blade symmetry tolerance:±0.05
Similar product:
Semi-Automatic brazing welding machine for diamond circular saw:
