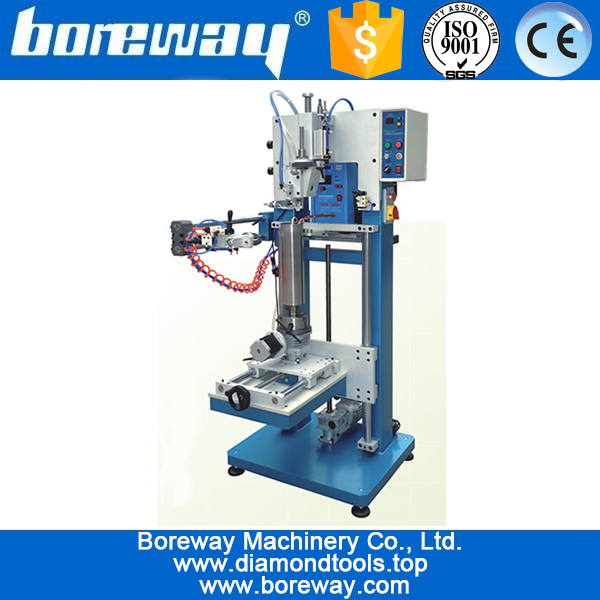

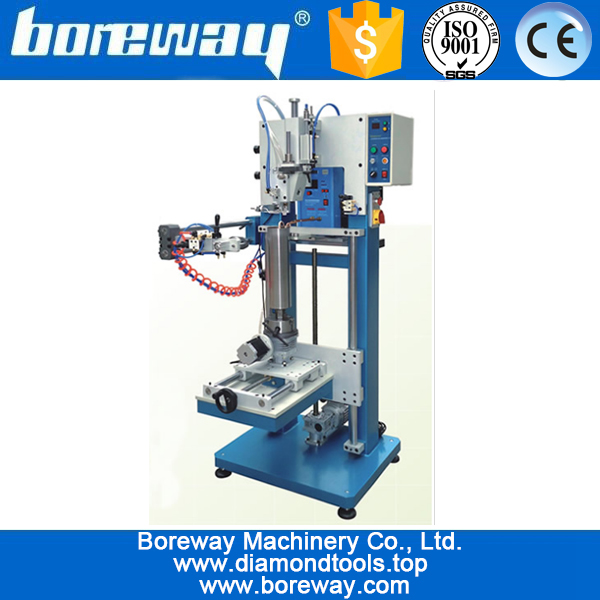

Automatic brazing welding frame for core drill bit
- Model:BWM-GHB20/300
- Diameter:20mm-300mm
- Height:40mm-500mm
- Brazing capacity :15-20 per hour
- Advantage：We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Introduction：
High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.
Features:
We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Specification:
Brazing Range:Diameter 20-300mm,Height 40-500mm,
Brazing speed:15-20 second per segment
Positioning accuracy:Surface of segment tolerance:±0.05mm，Blade symmetry tolerance:±0.05mm。
Picture:
