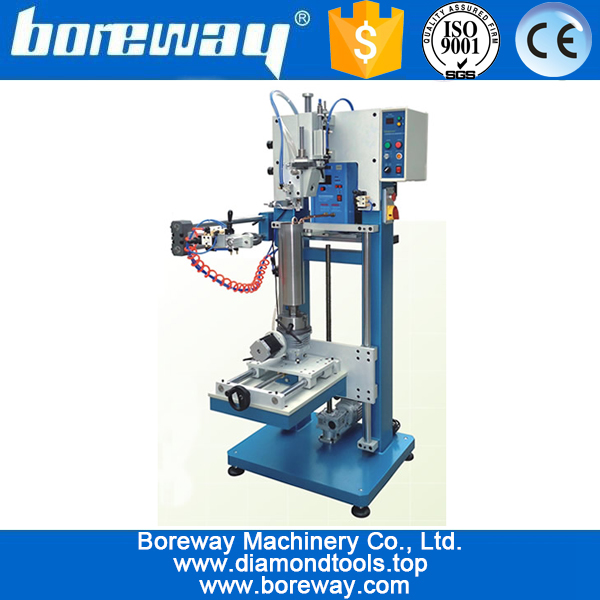

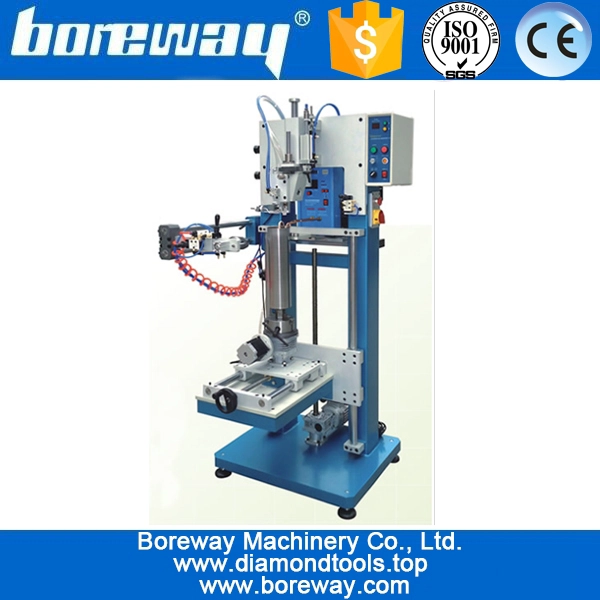

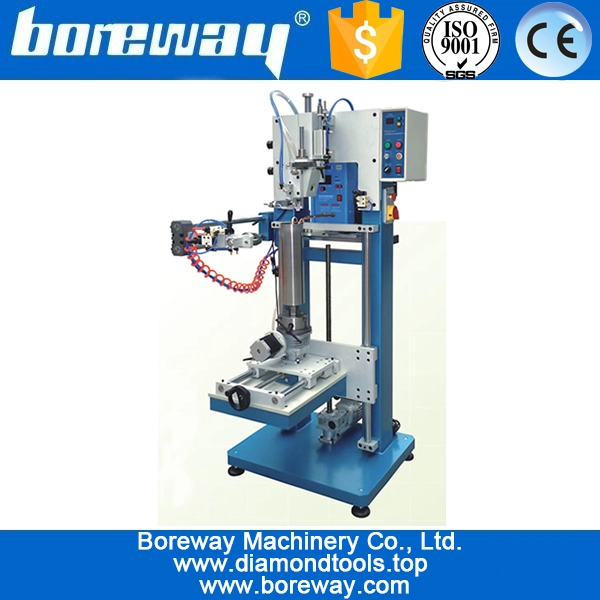

Pneumatic thin-wall-drill high frequency brazing welding frame rack
- Model:BWM-GHB20/300B,BWM-GHN20/300C
- Diameter:20mm-300mm
- Height:60mm-500mm
- Brazing capacity :15-20 per hour
- Advantage：We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Introduction：
High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.All pneumatic system,automatically halve to fix the position by electric control (set halving to 2~30 parts).Type C machine can automatically halve to fix the position,locate cutter head,heat,cool off and reset.
Features:
We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.
Specification:
Brazing Range:Diameter 20-300mm,Height 60-500mm,
Brazing speed:15-20 second per segment
Positioning accuracy:Surface of segment tolerance:±0.05mm,Blade symmetry tolerance:±0.05mm。
Picture:
Tel:008618650679939
Contact Person:boreway-05
PDF Show:PDF
