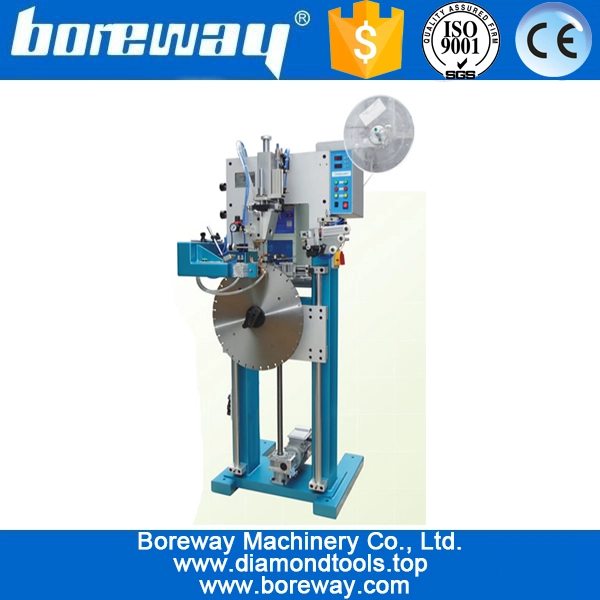

Automatic high frequency brazing welding frame for diamond saw blade

Automatic high frequency brazing welding frame for diamond saw blade

  • Model:BWM-GHA280/1600
  • Diameter:280mm-1600mm
  • Brazing capacity :8-12 per hour
  • Advantage:We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.

Introduction:

High precision brazing frame for diamond circular saw & core drill is a newly developed machinery for the industry.It’s easy to operate,precise,stable & high cost to performance ratio, comparing to imported machine.The machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.In the type B machine,cutter head can be automatically located,heated,cooled off and reset.

Features:

1.Automatic segment positioning,sliver solder delivering,heating,cooling and resetting

2.Use micro-controller unit,reliable and stable,maintenance convenient

3.High performance,high accuracy, high durability

4.Delicate and beautiful design in aesthetics

We adopt easy design of halving to fix the position,which enable the worker to use the rack with basic training.

Specification:

Brazing diameter:(for circular saw)280-1600mm

Brazing capacity:8-12 discs per hour(for diameter 350mm).

Positioning accuracy:Surface of segment tolerance:±0.05mmBlade symmetry tolerance:±0.05mm

MODEL

DIMENSION

WEIGHT

BRAZING DIAMETER

GHA250/800C

86×80×160

150kg

250~800mm

GHA250/1600C

100×86×180

230kg

250~1600mm

GHA250/2000C

110×90×205

280kg

250~2000mm

GHA250/2500C

110×90×2250

320kg

250~2500mm


Picture:
