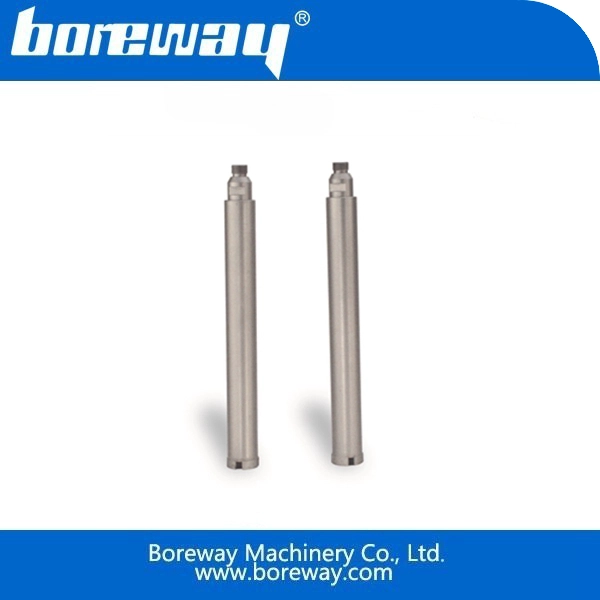

High speed water rig for drilling reinforced concrete
- Model: BW-WRDRC
- Type: Wet use
- Diameter: 22mm - 38mm
- Blade thickness: 2.5mm / 3.0mm
- Segment Height: 10mm

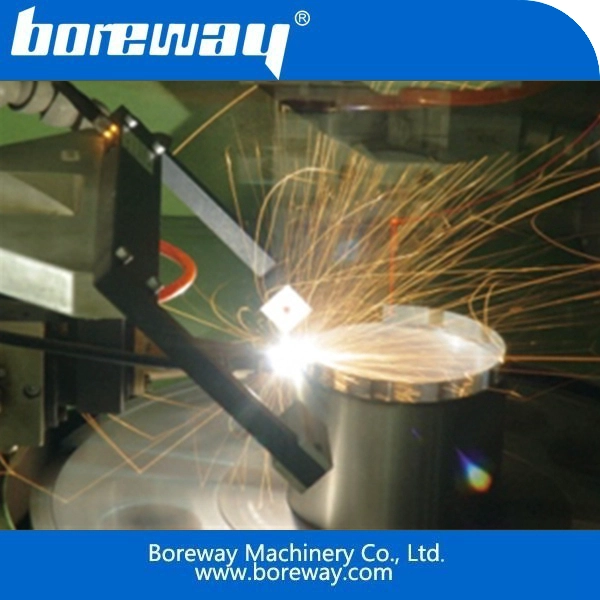

- Production process: laser welding
Introduction:
This section of reinforced concrete with a high-speed water rigs used to drill high-strength concrete, new concrete and other abrasive material, for desktop rig, rig hand or electric drills.
Features:
Laser welding, the annular blade, can not afford to tip, diamond concentration, long working life.
Specifications:
Specifications:
The following are the specifications of our conventional reinforced concrete with a high speed water rig:
Picture:
product name |
Product Code |
Diameter / mm |
Segment thickness / mm |
Tooth height / mm |
Interface |
Concrete reinforced concrete with high speed water rig |
WRDRC22 |
twenty two |
2.5 |
10 |
1/2'"BSP |
WRDRC25 |
25 |
2.5 |
10 |
1/2 '"BSP |
|
WRDRC30 |
30 |
2.5 |
10 |
1/2 '"BSP |
|
WRDRC35 |
35 |
2.5 |
10 |
1/2 '"BSP |
|
WRDRC38 |
38 |
3.0 |
10 |
1/2 '"BSP |
Tag:
For Granite
,For Marble
,Metal Bond
,Wet Use
,Laser welding
,used for drilling granite
,Used for drilling marble
,Usually mounted on CNC
