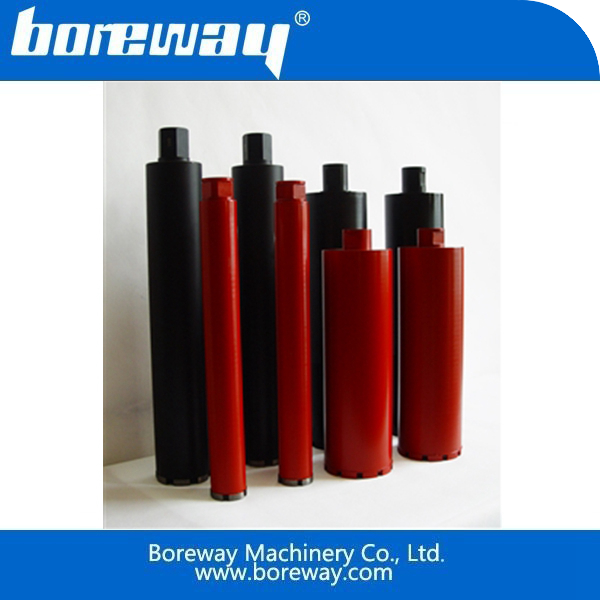

Laser welding concrete water drill bit
- Model: BW-LWCD
- Type: Wet use
- Diameter: 52mm - 203mm
- Blade thickness: 3.5mm / 4.0mm
- Segment Height: 10mm
- Drill tube length: 350mm
- Adaptation machines: suitable for a variety of desktop or handheld rig drilling machine
- Application materials: reinforced concrete, high strength concrete structures, brick walls, etc.
introduction

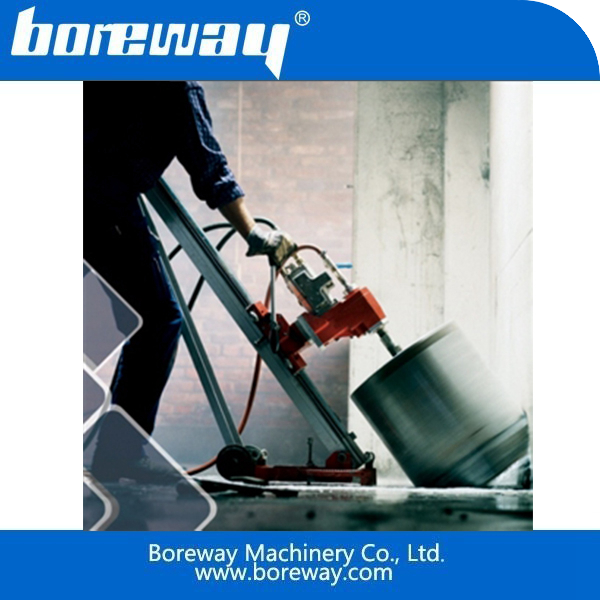

Laser welding concrete water drill used to drill reinforced concrete, high strength concrete structures, brick, etc., for a variety of desktop or hand-held drill machines
Features:
1. Laser welding, segment not easy to fall
2. The matrix of high strength, long life
3. The segment of good quality, sharpness and strong
Specifications:
Specifications:
The following are the specifications of our laser welding concrete water drill bit:
Picture:
|
product name |
Product Code |
Diameter / mm |
Segment thickness / mm |
Segment height / mm |
Effective length / mm |
Inner hole |
|
Laser welding diamond core drill bit |
LWCD52 |
52 |
3.5 |
10 |
350 |
M22 |
|
LWCD63 |
63 |
3.5 |
10 |
350 |
M22 |
|
|
LWCD76 |
76 |
3.5 |
10 |
350 |
M22 |
|
|
LWCD89 |
89 |
3.5 |
10 |
350 |
M22 |
|
|
LWCD102 |
102 |
3.5 |
10 |
350 |
M22 |
|
|
LWCD108 |
108 |
3.5 |
10 |
350 |
M22 |
|
|
LWCD152 |
152 |
3.5 |
10 |
350 |
M22 |
|
|
LWCD203 |
203 |
4.0 |
10 |
350 |
M22 |
Tag:
diamond drill bit
,For Granite
,For Marble
,Wet Use
,Laser welding
,used for drilling granite
,Used for drilling marble
,Used for concrete drilling
