semi automatic diamond saw blade brazing welding machine
- Model No:BWM-HJ350
- Welding Range:400mm -3500mm(standard 1800mm)
- Welding Rate:6-12 PCS/Min
- Water Consumption:1.5-2m³/h
- Equipment Weight:330Kg
- Machine Dimensions:L900 * W700 * H2400 (Stand)
- Package Weight:380kg
- Package Dimensions:L2530 * W960 * H780 (Horizontally)
- Voltage:220 （Single-phase）, 50HZ
| Introduction: |
semi automatic diamond saw blade brazing welding machine. It is a new type of high-frequency welding auxiliary equipment for diamond saw blades. It can automatically complete high-frequency heating, rapid cooling, tool holder and other operations. Easy to install, easy to connect 220V power supply, water intake, water outlet, you can work without professional installation. Small size, light weight, simple operation, general training can be operated simply.
| Feature: |
1.Welding diameter range: 400 ~ 3500 mm.
2.Small size, light weight, simple operation, general training can be operated simply.
3.The diamond segment device adopts mechanical geometric alignment to ensure symmetry and accuracy.
| Specification: |
Specification of semi automatic diamond saw blade brazing welding machine：
| Model No: BWM-HJ350 | |
| Welding Range | Φ400mm - 3500mm(standard Φ1800mm) |
| Verticality | ≤± 0.3mm |
| Parallelism | ≤± 0.3mm |
| Welding Rate(Segments Qty/Min) | 6-12 PCS/Min |
| Air Pressure | 0.3 - 0.6Mpa |
| Water Pressure | ≥ 0.2Mpa |
| Voltage | 220V (Single-phase)50Hz |
| Power(From LED Light) | 550W |
| Water Consumption | 1.5 - 2m³/h |
| Machine Dimensions | L900*W700*H2400mm |
| Equipment Weight | 330Kg |
| Package Dimensions | L2530*W960*H780(Horizontally) |
| Package Weight(Wooden Package) | 380Kg |
Noted:This of welding frame is not equipped with high frequency machine, air compressor, water pump, if necessary, can be another random frame configuration.
| Picture: |

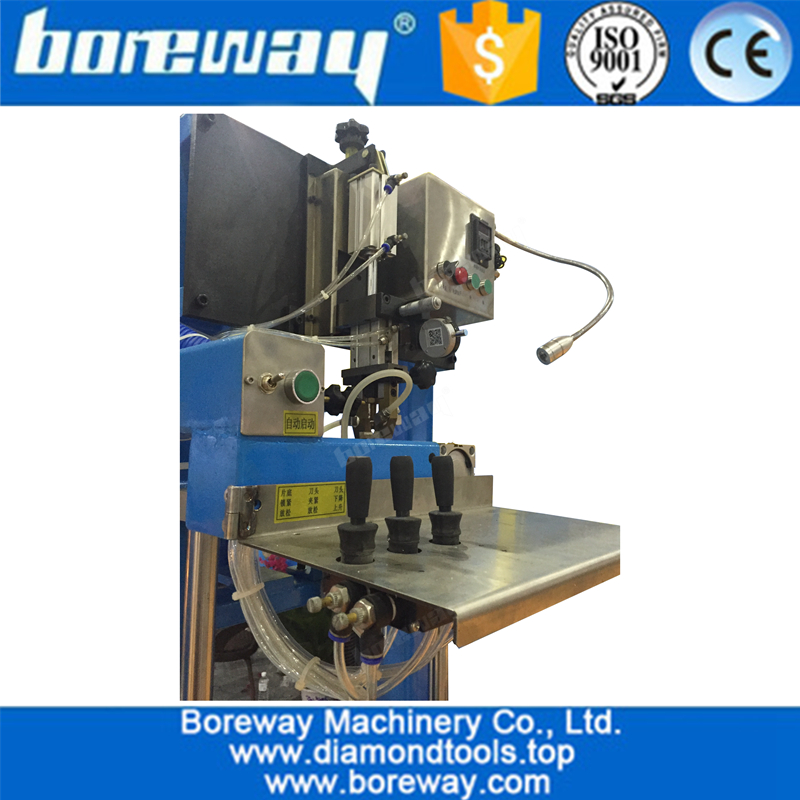

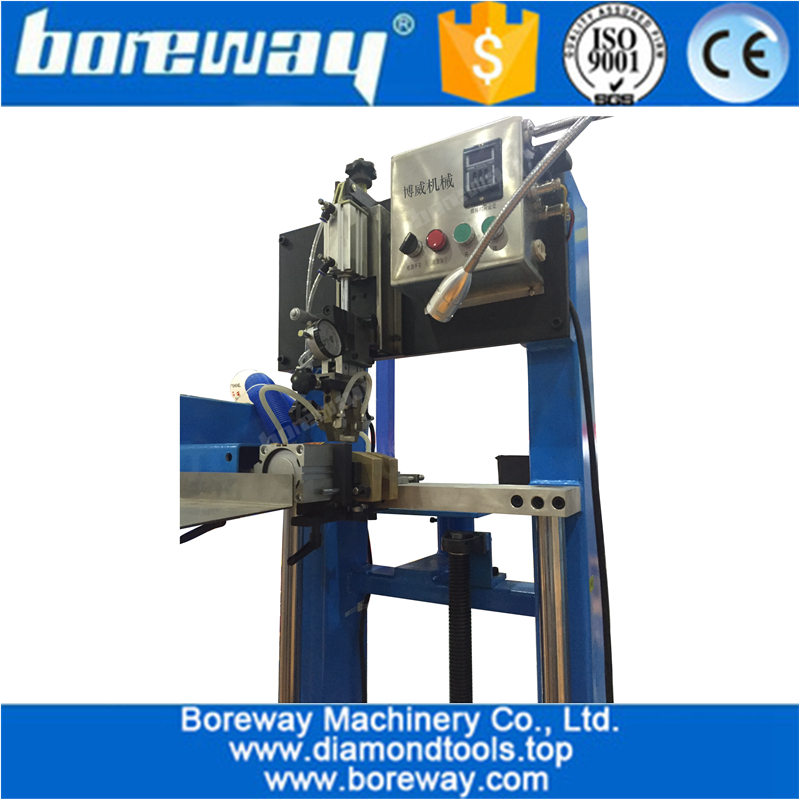

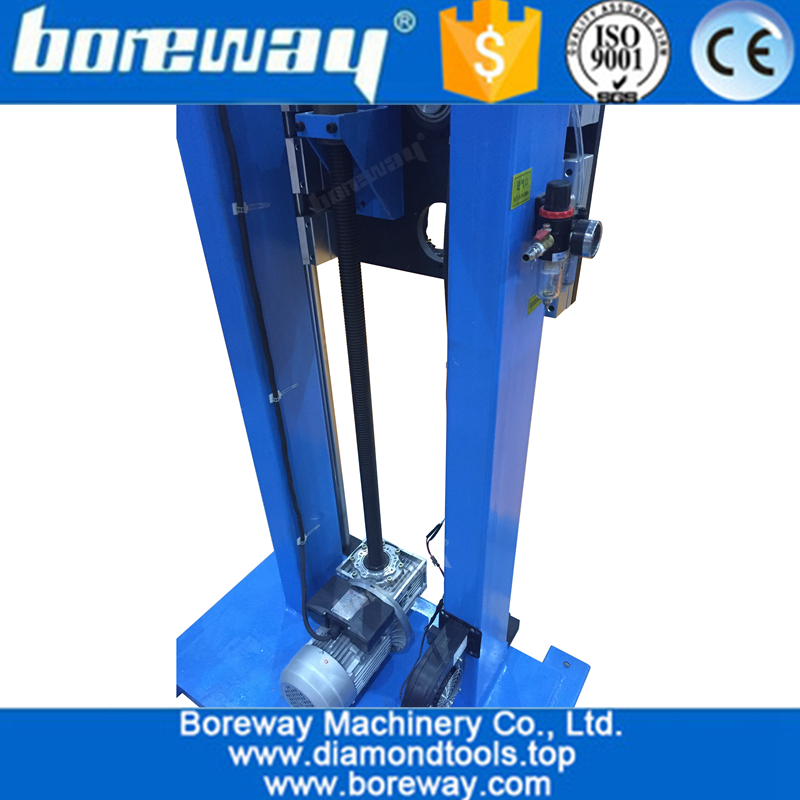

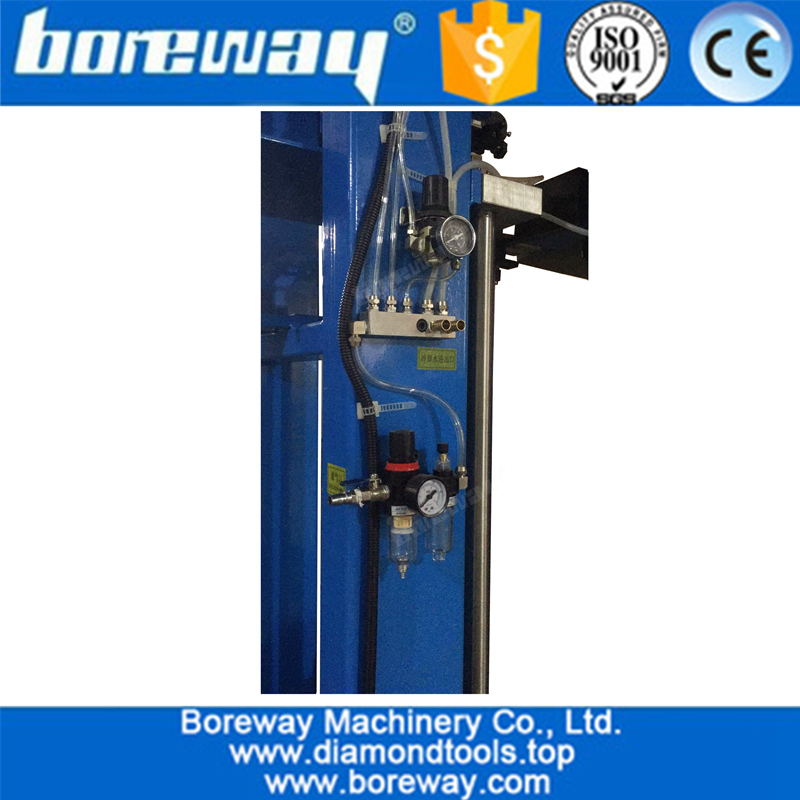

semi automatic diamond saw blade brazing welding machine
